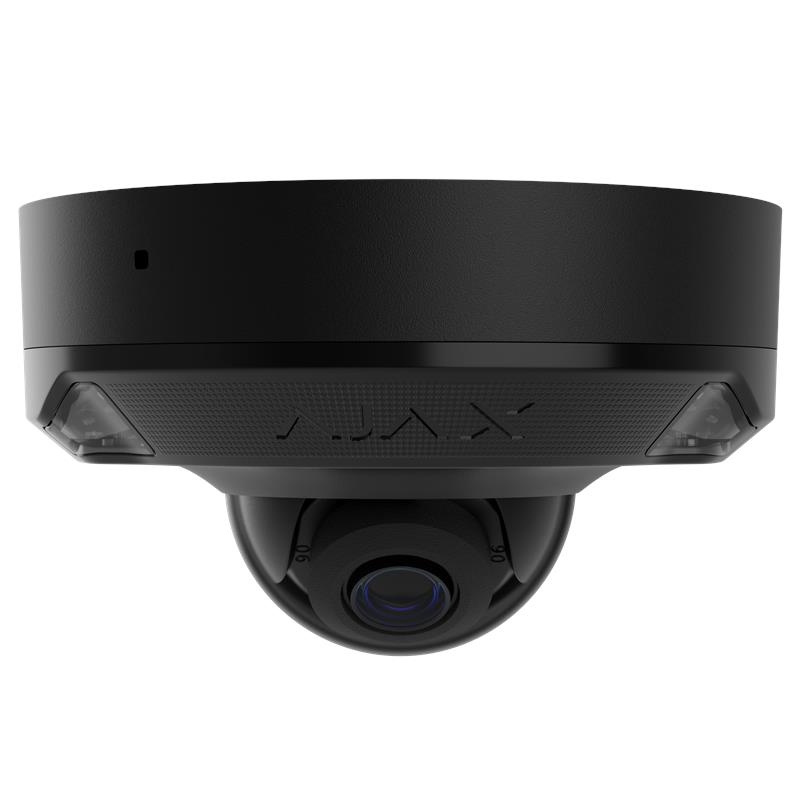

Ajax DomeCam Mini HL (5 MP, 4 mm) is a compact dome IP camera designed for reliable video surveillance both indoors and outdoors. It combines modern features, elegant design, and robust construction. With its discreet form factor, the camera is suitable for both residential and commercial properties where monitoring is required without compromising aesthetics.

The camera is equipped with a 5-megapixel CMOS sensor, producing clear video with a resolution of 2880×1620 at up to 25 frames per second. Unlike the version with a 2.8 mm lens, the fixed 4 mm lens provides a narrower viewing angle — approximately 75°–85°. This allows focusing on specific areas: driveways, entrances, corridors, or parking spaces, ensuring better detail for faces, license plates, and other important objects.

HybridLight illumination combines infrared diodes for covert monitoring and white LED light for color recording at night. Automatic mode switching allows confident area control even in complete darkness at a distance of up to 15 meters.

True WDR technology ensures a balanced image in conditions of strong lighting contrast, preserving clarity of details in bright and shadowed areas of the scene.

Built-in AI analytics allows the camera to distinguish between people, vehicles, and animals, significantly reducing false alarms and increasing system efficiency.

The durable metal casing meets IP65 (dust and water protection) and IK08 (impact resistance) standards, allowing the camera to withstand harsh weather conditions and the risk of vandalism. The operating temperature range is from −30 °C to +60 °C, with humidity up to 90%.

For data storage, the camera supports microSD cards up to 256 GB (V30 class recommended), as well as integration with NVR video recorders with HDDs up to 16 TB.

Network and Power: 100 Mbps Ethernet with PoE (802.3af/at) support allows power and data to be supplied via a single cable; 12 V DC power is also available. Video compression uses H.264 and H.265 codecs, which reduces network load and saves storage space.

The security system supports mTLS authentication, Secure Boot, and signed OTA updates, ensuring protection against unauthorized access and meeting modern requirements.

The camera has a built-in digital microphone, allowing audio to be recorded synchronously with video. Supported codecs: G.711 μLAW/ALAW, G.726, G.722.

Thanks to integration with the Ajax ecosystem, DomeCam Mini HL (5 MP, 4 mm) can be part of a comprehensive security system: triggering scenarios, activating sirens or lights, sending push notifications, working with NVRs, building "video walls," and setting up private zones.
