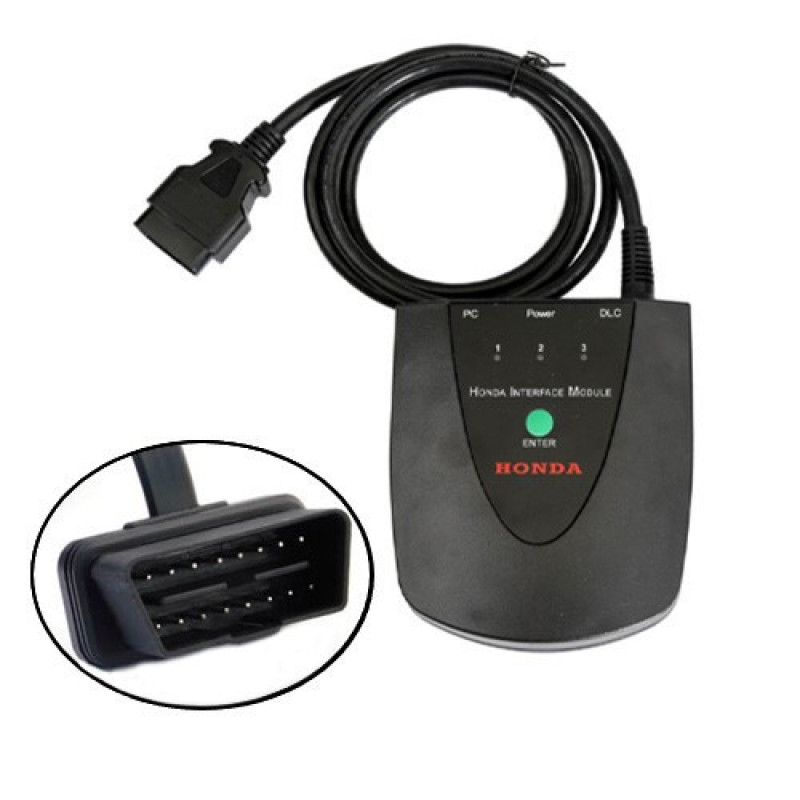

The Honda HDS HIM automotive scanner is designed for dealer diagnostics and programming of Honda and Acura vehicles (starting from 1992 models). The device can perform diagnostics of control units via K-line and digital CAN bus, supporting both old and new protocols. Vehicle diagnostics are performed through the OBD2 connector in the car's interior (usually located under the steering wheel), and the scanner connects to the computer via the COM port.
Scanner functions for working with Honda/Acura dealer protocols:

Reads and decodes trouble codes from control unit memory
Erases trouble codes (clears memory)
Displays current system parameters in digital form (up to 8 parameters simultaneously)
Displays current parameters in graphical form (any 2 parameters simultaneously, selectable)
Combined data display in graphical and digital form
Actuator control
Resets adaptive coefficients from control unit memory
Logging. Records and saves an array of digital parameters corresponding to a given driving cycle, with the ability for subsequent frame-by-frame review (including in graphical form)
Special functions (changing available unit settings, programming)

Supported electronic control systems:

PGM FI — gasoline engine management system
Diesel — diesel engine management system
IMA — hybrid powertrain management system
AT — automatic transmission control system
ABS — anti-lock braking system
TCS — traction control system
VSA — vehicle stability assist system
VTM 4 — connected rear-wheel drive control system
4 WS — wheel steering control system
SH-AWD — all-wheel drive control system
ATTS — active torque transfer system
DBW — electronic throttle control system
EPS — electric power steering system
IHCC — cruise control system with Distronic function
HiDS — cruise control system with lane keeping assist function
SRS — airbag control system
Keyless Access — remote access system
R/C Engine Starter — remote engine start system
TPMS — tire pressure monitoring system

Housing material: plastic
Size: 14 x 15.5 x 4.5 cm
Weight: 600 g

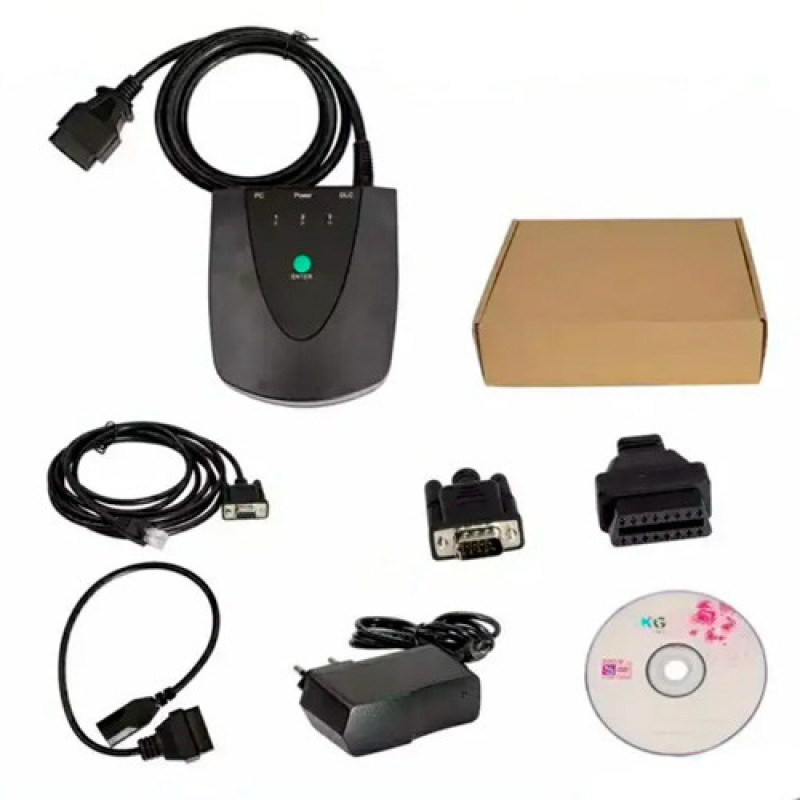

Package contents: Honda HDS HIM scanner, OBD 2 to 3 pin adapter cable for older cars, RJ45-RS232 cable, power supply, 2 test plugs, and software disc ()
