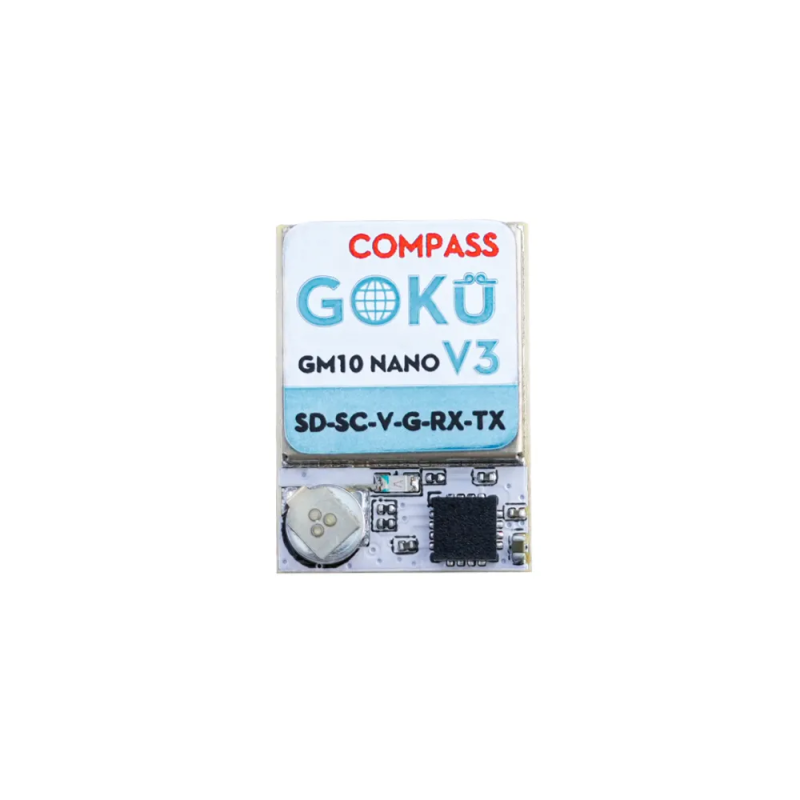

GOKU GM10 Nano V3 GPS Module with Compass for Drone is a compact and precise solution from the FLYWOO brand for equipping your quadcopter with a modern positioning system. The module is built on the M10050 chip (tenth generation), which guarantees fast satellite acquisition and stable coordinate fixation even in difficult reception conditions.

Key Features

GOKU GM10 Nano V3 supports multi-system positioning: GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS. This allows the module to operate stably and accurately in various regions worldwide. Thanks to plug-and-play mode, installation is simple and requires no soldering — the module has a 4-pin connector and comes with a 100mm cable.

Advantages

• High positioning accuracy thanks to the M10050 chip and support for multiple satellite systems;
• Fast satellite connection and stable operation in difficult conditions;
• Easy installation: 4-pin connector, no soldering required;
• Universal protocol compatibility: UBLOX (recommended for Betaflight 4.3 and newer) and NMEA (support for older Betaflight 4.2 versions);
• Wide operating temperature range: from -40°C to +85°C;
• Minimal size and weight: 12×17×5 mm at 2.6 g, suitable for miniature quadcopters.

Technical Specifications

Chip: M10050 (tenth generation)

Supported satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS

Operating frequencies: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1

Number of search channels: 72

Sensitivity: -162 dBm (tracking), -160 dBm (reacquisition)

Data protocols: TTL (default), RS-232

Positioning output frequency: 1-10 Hz (configurable, default 1-10 Hz)

Power supply: 3.3-5V

Operating temperature: -40°C ~ +85°C

Dimensions: 12×17×5 mm

Weight: 2.6 g

PPS LED (yellow): off when no GPS fix, blinks when GPS fix is acquired.

Installation and Compatibility

The module features a convenient 4-pin connector for connection and comes with a 100mm cable, facilitating integration with most flight controllers. Support for UBLOX and NMEA protocols ensures compatibility with various Betaflight versions and compatible controllers. The compact size and low weight allow the module to be installed even in confined spaces within the drone's body.

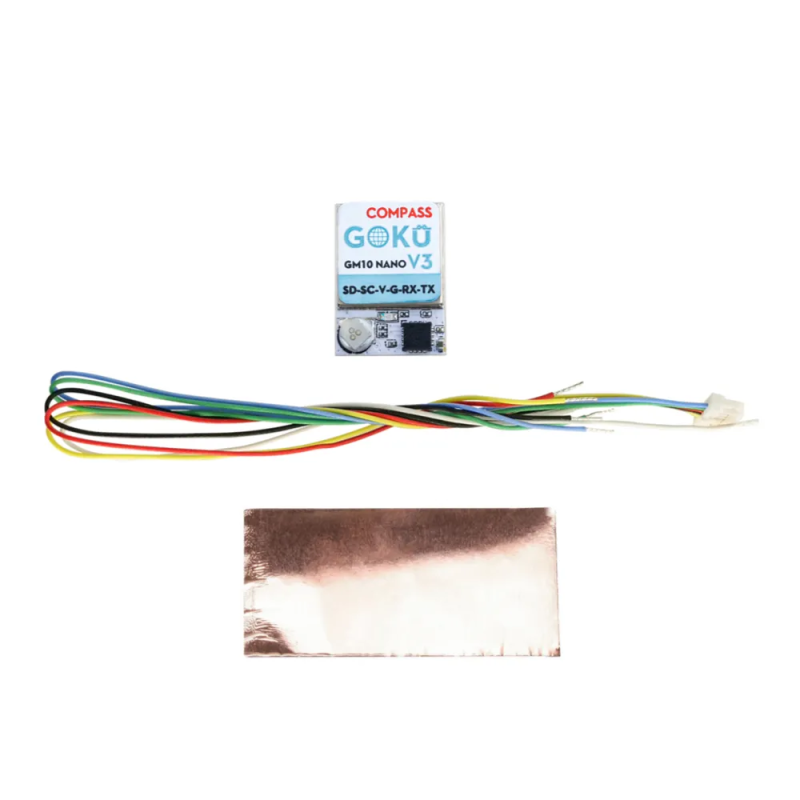

Package Contents

• 1 × GM10 NANO V3 GPS with compass
• 1 × 100mm cable
• 1 × copper foil

Brand: FLYWOO

Category: Drones & Quadcopters > Drone Components > Drone Parts

This module will be a reliable upgrade for your quadcopter's positioning system, ensuring fast satellite signal acquisition, accurate positioning, and stable operation across a wide range of temperatures and operating conditions.
