Gerotor Hydraulic Motor MP 400 C M+S Hydraulic (396 cm3, 4.6–4.8 kW, 150 rpm)

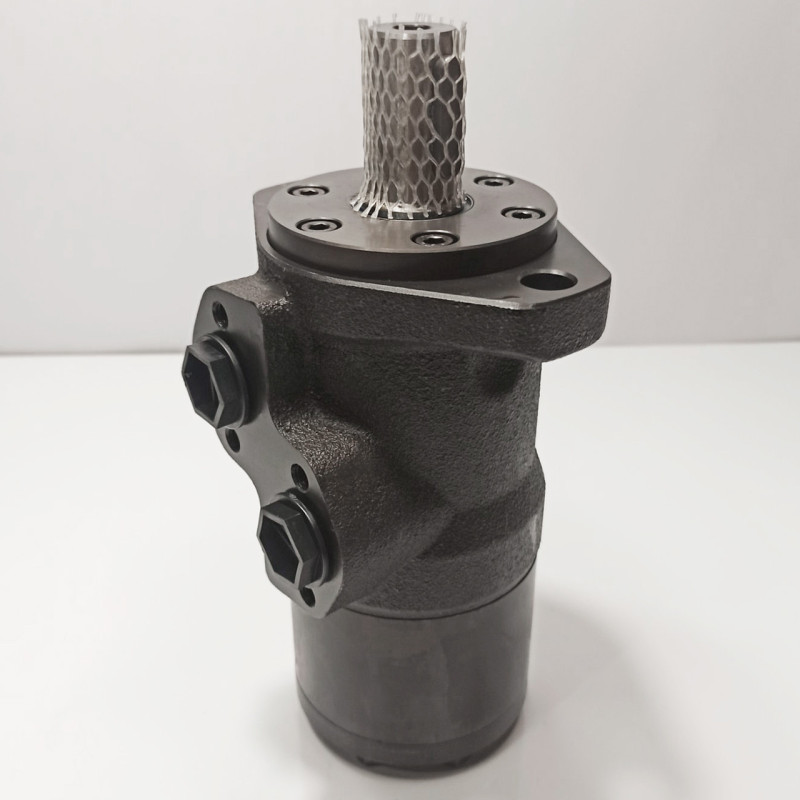

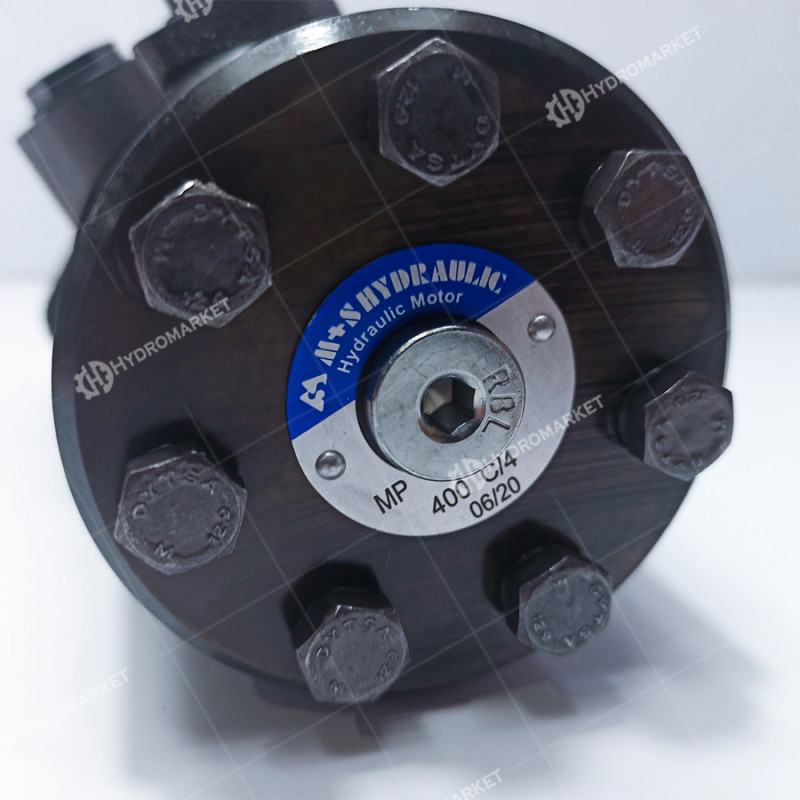

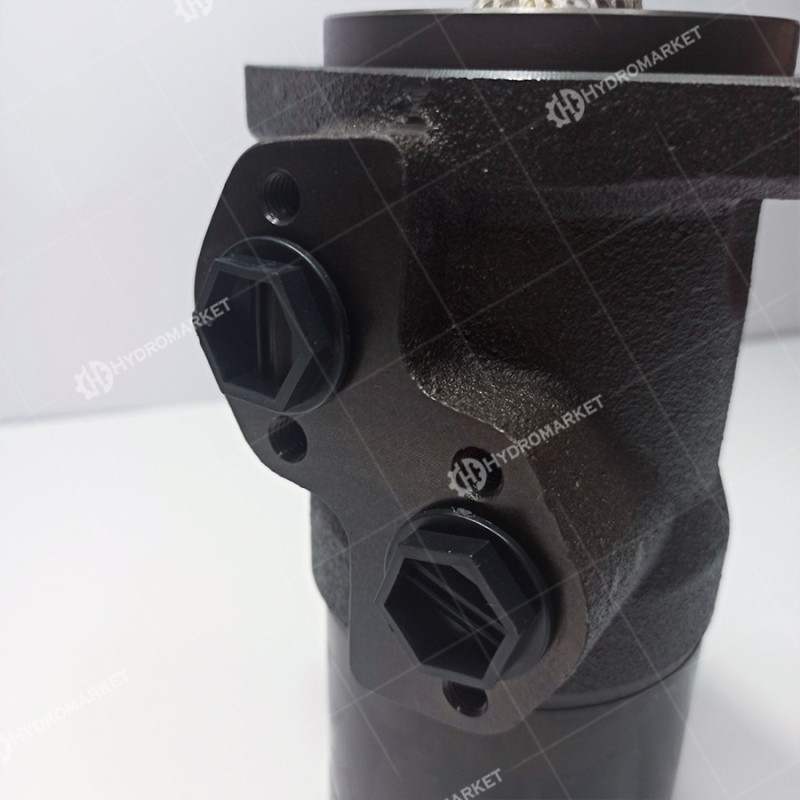

Introducing the gerotor hydraulic motor MP 400 C from manufacturer M+S Hydraulic (Bulgaria), supplied under the Hydro-pack brand. This compact hydraulic motor has a displacement of 396 cm³ and is designed for a wide range of applications in special machinery and industrial equipment. The manufacturer's description states a power of 4.8 kW, while the technical parameters indicate a maximum power of 4.6 kW — these figures reflect the specifics of operation under different load conditions. The MP series from Hydro-pack (Hydro-pack / Hydro-pack from Hydro-pack for MP) is characterized by low starting torque and the ability to operate at high speeds, with the housing and design optimized for compact installation and long-term operation.

Key Characteristics

Shaft and Seals

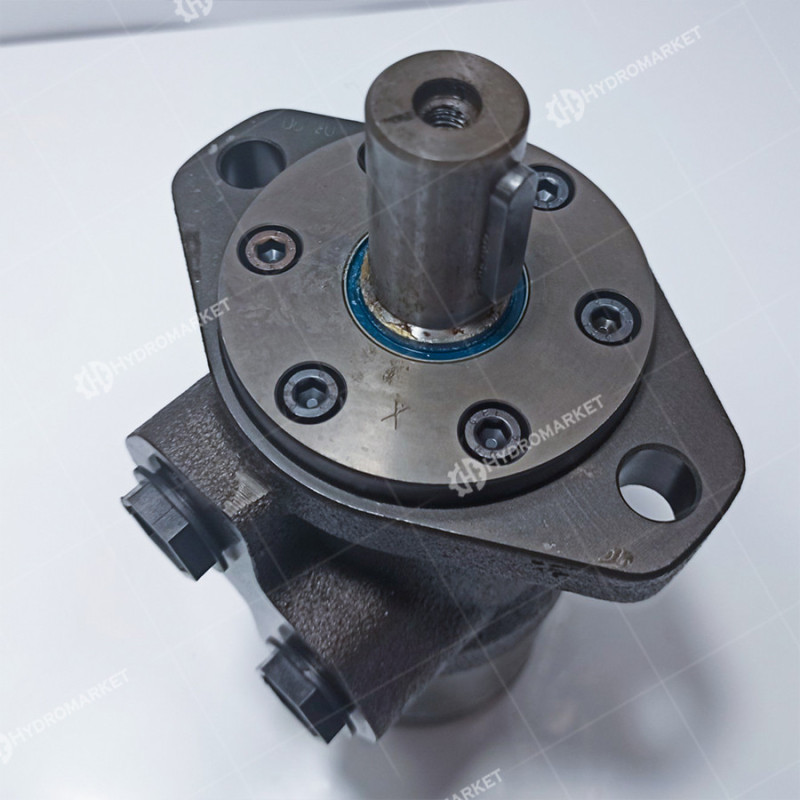

• Straight cylindrical shaft Ø25 with key A8x7x32 DIN6885.
• Standard shaft seal for basic configuration.
• Other shaft types available by individual order (see specifications in PDF).

Applications

The MP 400 C hydraulic motor is suitable for various special machinery and industrial equipment: tractors, motorcycles and ATVs, marine and river boats, loaders, and other machines where a compact, powerful, and reliable hydraulic transmission is required. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Motors.

Operating Recommendations

• Do not allow simultaneous operation at intermittent speed and intermittent pressure.
• Recommended filtration: ISO cleanliness code 20/16; nominal filtration 25 µm or higher.
• It is recommended to use high-quality mineral-based hydraulic oils HLP (DIN 51524) or HM (ISO 6743/4).
• Minimum recommended oil viscosity: 13 mm²/s (70 SUS) at 50°C.
• Recommended maximum system operating temperature: 82°C.
• Before prolonged operation under maximum load, fill the system with working fluid and allow the hydraulic motor to operate at moderate load and speed for 10–15 minutes for optimal component break-in and extended service life.

The MP 400 C gerotor hydraulic motor combines compact dimensions with the ability to operate at moderate pressures in continuous mode or under short-term peak loads. Thanks to the availability of shaft options and standard seals, this unit is easily integrated into existing hydraulic systems. For complete technical information and dimension tables, please refer to the official technical PDF: MP.pdf.

Brand: Hydro-pack. Manufacturer: M+S Hydraulic (Bulgaria).
