U-tex ZTU 1205A/17-FZ Power Uninterruptible Power Supply (12V, 5A, 60W)

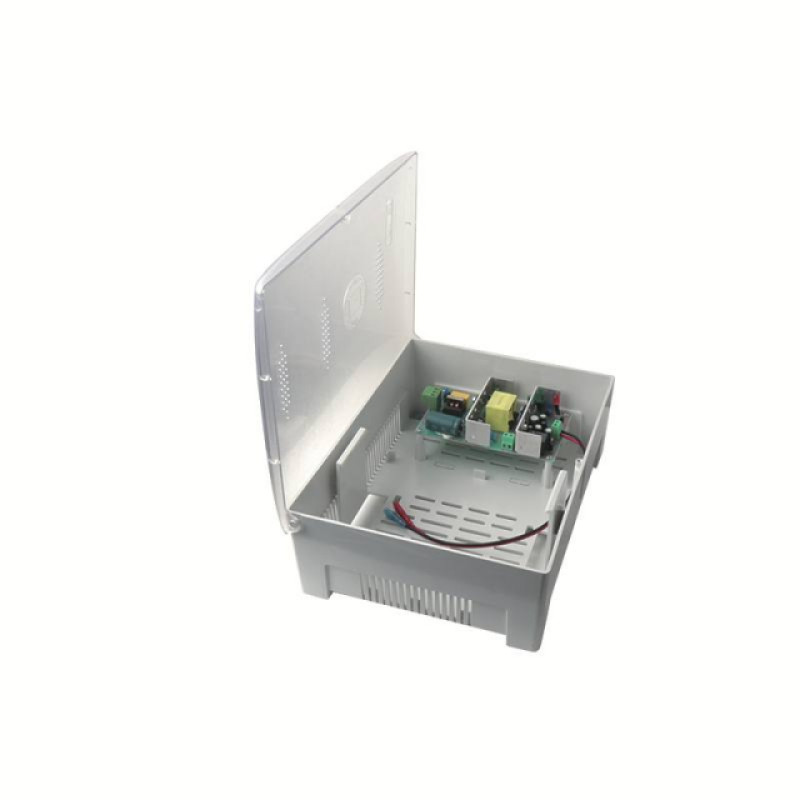

U-tex ZTU 1205A/17-FZ Power is a 12V pulsed stabilized uninterruptible power supply in a plastic enclosure, designed to power equipment with consumption up to 5A and power up to 60W. The enclosure is designed for installing a maintenance-free sealed 12V battery with a capacity of 17–20 Ah (battery purchased separately). This is a reliable solution for powering CCTV cameras, video recorders (DVR, NVR), network equipment, security alarms, and electronic locks.

Key Features

• Output voltage: adjustable within 12.5 V ~ 13.8 V (built-in potentiometer);
• Output current: 5 A;
• Power in enclosure: 60 W;
• Number of outputs: 1;
• Maximum battery charge current: 1.8 A;
• Battery compartment: 12 V, 17–20 Ah;
• Enclosure material: plastic; enclosure dimensions: 282 x 221 x 110 mm;
• Wall-mount capability;
• Warranty: 12 months.

Protection and Control Functions

The device is equipped with comprehensive protection mechanisms: short-circuit protection, electronic overcurrent protection of outputs with automatic recovery after the cause is eliminated, deep discharge protection for the battery, as well as protection against impulse overvoltages and surges occurring during lightning discharges or switching processes in the power grid. In case of power outage, there is an automatic switch to backup power from the connected battery.

Purpose and Advantages

U-tex ZTU 1205A/17-FZ Power is ideal for providing uninterruptible power to 12V devices: video surveillance, security systems, network equipment. Advantages of the model: compact plastic enclosure with space for a 17–20 Ah battery, smooth adjustment of output voltage for precise tuning to specific devices, optimal battery charging when mains voltage is present, status indication (mains voltage presence, output voltage presence).

Technical Data (Summary)

• Input voltage: 100–240 V AC (standard mains range);
• Output: DC 12–13.8 V (adjustable);
• Output current: 5 A; power: 60 W;
• Maximum battery charge current: 1.8 A;
• Battery parameters: 12 V, 17–20 Ah (not included);
• Enclosure dimensions: 282 x 221 x 110 mm; material: plastic.

Package Contents

• U-tex ZTU 1205A/17-FZ Power Uninterruptible Power Supply — 1 pc.;
• Cable set — included.

This universal UPS unit ensures stable operation of equipment during voltage fluctuations and grid instability, allows adjustment of the output voltage to the needs of connected devices, and extends their operation during power outages thanks to the connected battery. It is recommended to use sealed maintenance-free lead-acid 12V batteries of appropriate capacity.
