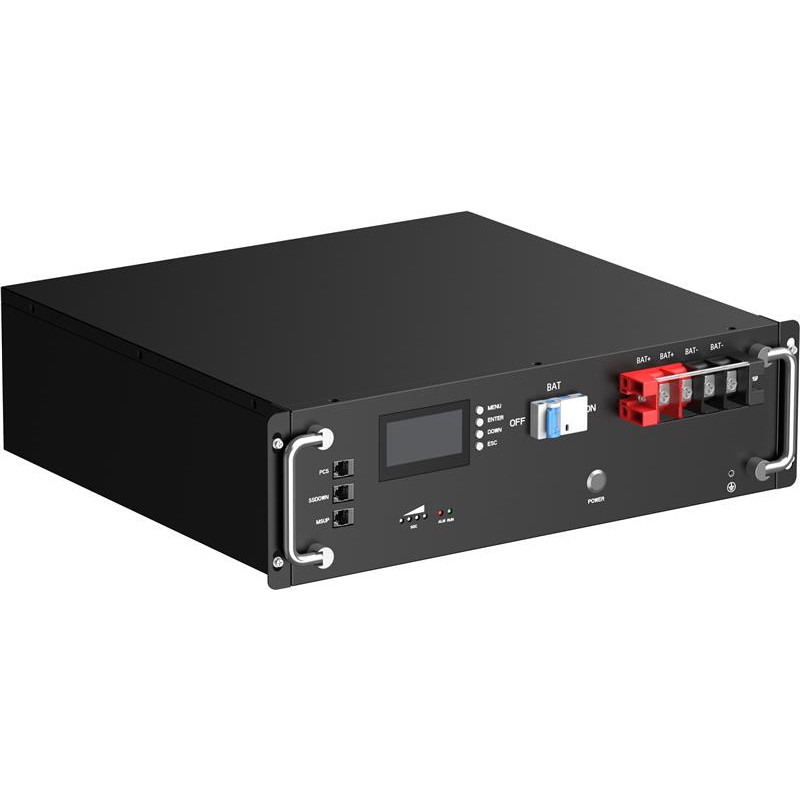

The 2E capacity expansion battery for PowerStation Kufa, 5120 Wh, 51.2V, 100A is a LiFePo4 battery for PowerStation Kufa uninterruptible power supply systems that can be used to increase capacity or replace batteries in PowerStation Kufa. Mounting type: rack-mount. M6 connection terminals. The nominal voltage is 51.2 V. The nominal capacity is 100 Ah.

Battery type: LiFePO4
Battery energy: 5.12 kWh
Battery capacity: 100 Ah
Battery nominal voltage: 51.2 V
Battery operating voltage range: 44.8 ~ 57.6 V
Standard charge current: 50 A
Standard discharge current: 50 A
Maximum charge current: 100 A
Maximum discharge current: 100 A
Depth of discharge: 95%
Maximum number of parallel connected batteries: 15
Estimated battery life: 6,000 cycles (80% Depth of Discharge, 0.5C, 25°C)
Operating temperature
Charging: 0 ~ 45°C
Discharging: -10 ~ 45°C
Operating humidity: 5% ~ 85%
Nominal operating altitude:
