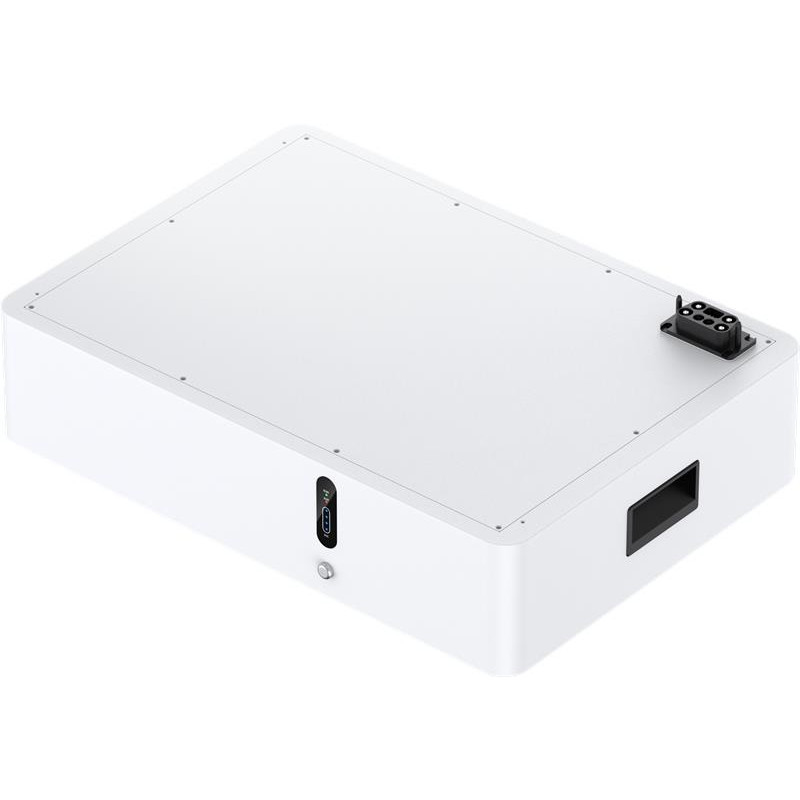

The 2E capacity expansion battery for PowerStation DIZHA, 5120 Wh, 51.2V, 100A is a LiFePo4 battery for PowerStation DIZHA uninterruptible power supply systems that can be used to increase capacity or replace batteries in PowerStation DIZHA.

Mounting type: block. Connection terminals - special connector. The nominal voltage is 51.2 V. The nominal capacity is 100 A h.

Equipped with BMS with automatic address distribution in a parallel system.

Battery type: LiFePO4
Battery energy: 5.12 kWh
Battery capacity: 100 Ah
Nominal battery voltage: 51.2 V
Battery operating voltage range: 44.8 ~ 57.6 V
Standard charge current: 50 A
Standard discharge current: 50 A
Maximum charge current: 100 A
Maximum discharge current: 100 A
Depth of discharge: 95%
Maximum number of parallel connected batteries: 5
Estimated battery life: 6,000 cycles (80% Depth of Discharge, 0.5C, 25°C)
Operating temperature
Charging: 0 ~45°C
Discharging: -10 ~45°C
Operating humidity: 5% ~ 85%
Nominal operating altitude:
