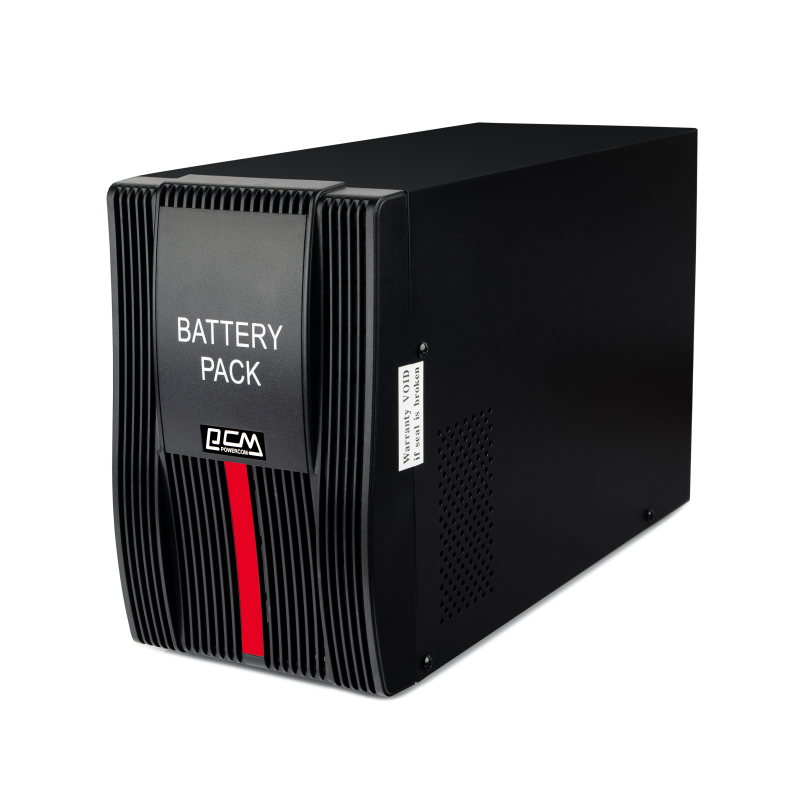

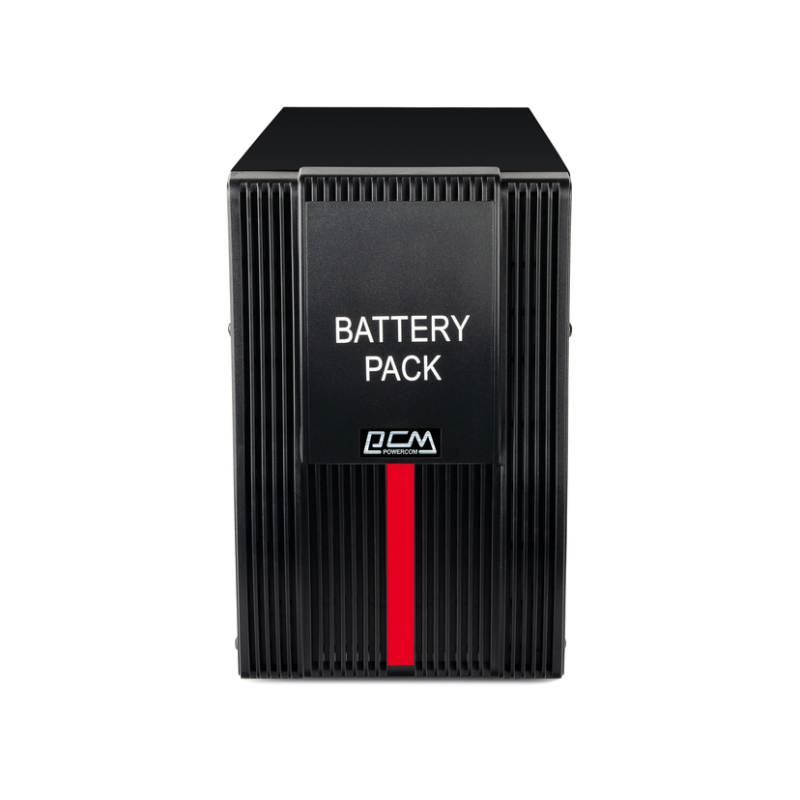

External Battery Modules for POWERCOM MAC-1000 UPS (Ordering Information)
| SKU | Form Factor | Parameters | Dimensions, WxDxH | Weight, kg |
| EBP.MAC-1000.24VDC | Horizontal Surface Mount | 24V (12V 7.2Ah x6) | 152 x 420 x 238 | 20 |
Battery Backup Time Table for MAC-1000 UPS
| Configuration | Load (%) | |||||||||
| 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% | |
| MAC-1000 | 30 min | 18 min | 12 min | 10 min | 7 min | 5.5 min | 4.5 min | 3.5 min | 3 min | 2 min |
| MAC-1000 + 1 Battery Pack | 147 min | 86 min | 57 min | 47 min | 35 min | 29 min | 24 min | 20 min | 17 min | 15 min |
| MAC-1000 + 2 Battery Packs | 290 min | 171 min | 115 min | 93 min | 71 min | 58 min | 49 min | 42 min | 37 min | 32 min |
| MAC-1000 + 3 Battery Packs | 435 min | 265 min | 177 min | 143 min | 110 min | 90 min | 77 min | 65 min | 58 min | 51 min |
| MAC-1000 + 4 Battery Packs | 600 min | 370 min | 253 min | 196 min | 151 min | 125 min | 105 min | 90 min | 80 min | 70 min |
| MAC-1000 + 5 Battery Packs | 747 min | 455 min | 313 min | 251 min | 194 min | 158 min | 135 min | 115 min | 103 min | 91 min |
* Note:
- Battery backup time may vary depending on load power and type, power supply conditions, battery life, ambient temperature, etc.
- Installation and connection of three-phase equipment must be performed only by certified specialists. Please contact POWERCOM's representative in Ukraine, Exim-Standard LLC.
- Due to continuous product improvement efforts, technical specifications may be changed without prior notice and reflected in the accompanying documentation.
- This information is not an offer and cannot be considered a manufacturer's warranty.
