Product Code: FA94-2436-94
2 514 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 7.5
Frequency range, Hz: 50/60
Height, mm: 145
All specifications
We will deliver this product:
Payment
Description

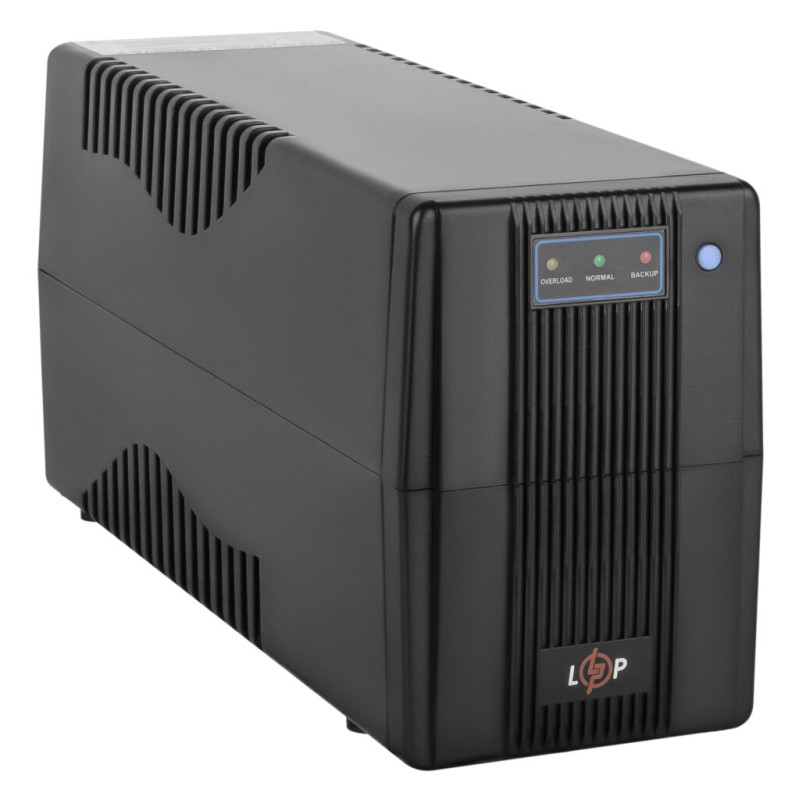

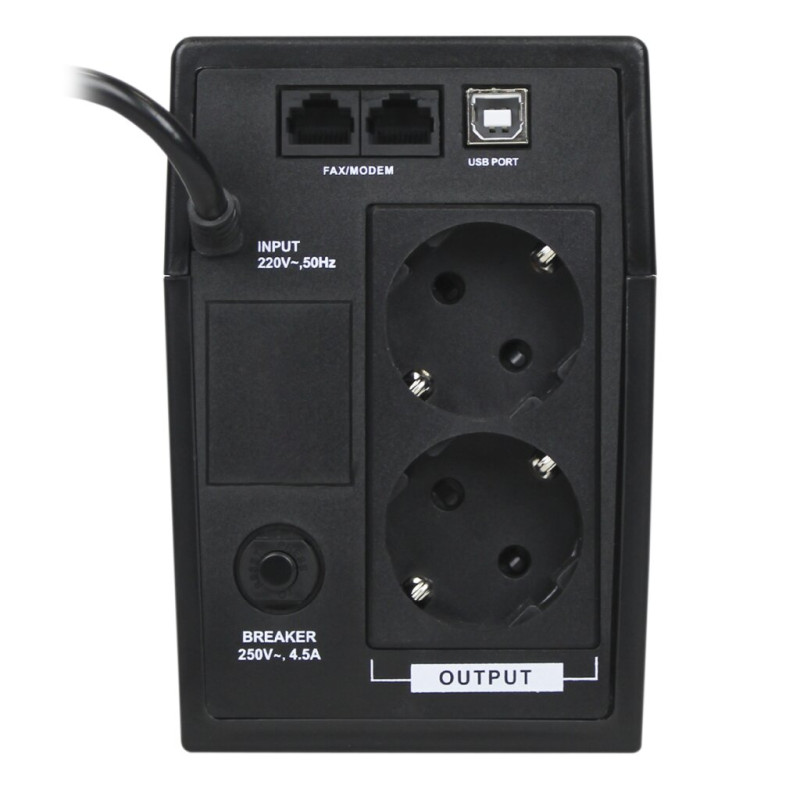

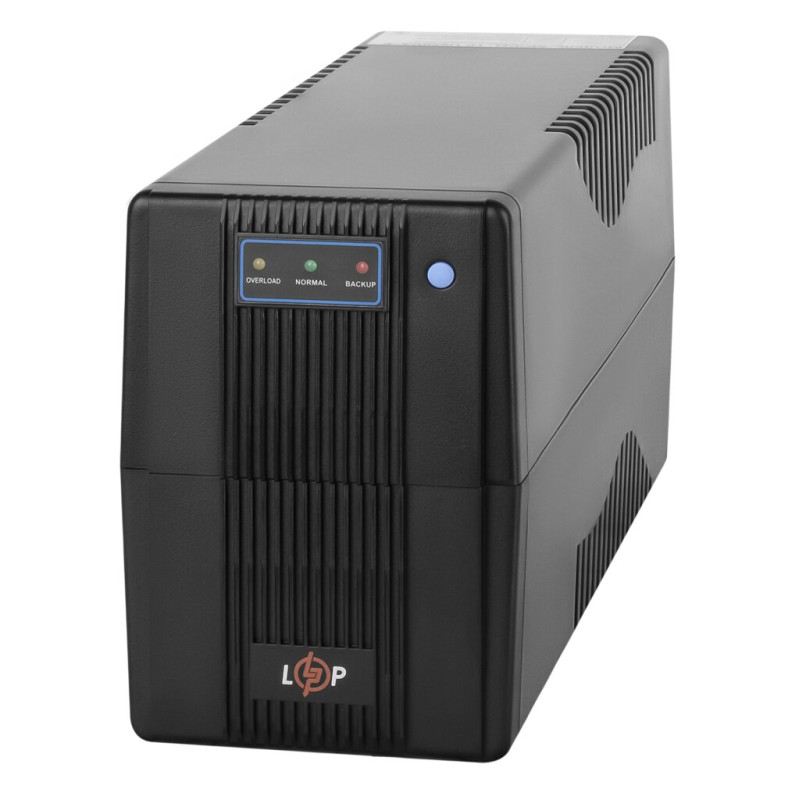

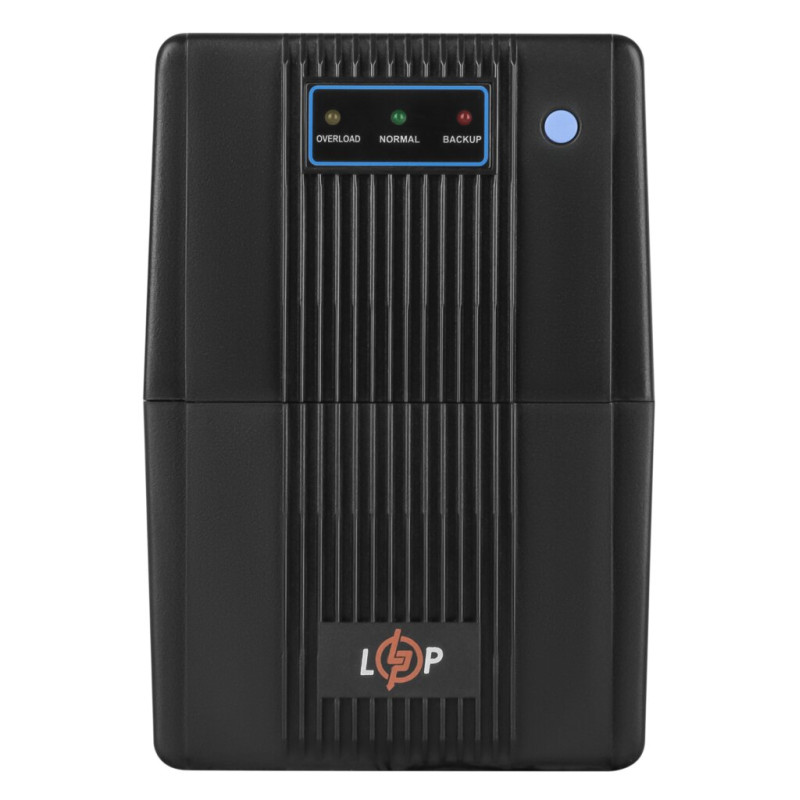

The LPM-U650VA-R uninterruptible power supply is a line-interactive device with an approximated sine wave. It performs the functions of stabilizing voltage in the power grid and protecting household, office, or industrial equipment from overloads or short circuits. The device can provide autonomous operation of appliances (during power outages) from a battery for 10-15 minutes. The switching time to autonomous mode is 4-6 ms. The LPM-U650VA-R UPS is recommended for connection to TV or audio equipment (including security video surveillance devices), kitchen or household appliances, as well as lighting fixtures. Power consumption - 650VA/390W. The device operates with an input voltage of 145-290V. The output voltage is 220V±10%. Frequency range - 50/60 Hz. The LPM-U650VA-R connects to the mains using a standard Europlug. For connecting electrical appliances, the outer side of the LPM-U650VA-R UPS housing is equipped with two Euro sockets. The interface for connecting to a personal computer is USB. The housing material is high-quality plastic. The housing color is black. On the outer side of the housing, in addition to the plug and sockets, there is an LCD indicator that shows the operating mode of the LPM-U650VA-R (from the mains or from the battery). Dimensions - 310x90x145 mm. Weight - 4.3 kg.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 7.5
Frequency range, Hz 50/60
Height, mm 145
Housing material Plastic
Indication type LED
Input voltage range, V 145-290
Length, mm 310
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 1
Number of Outputs 2
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 220±10%
Output waveform from mains pure sine wave
PC connection interface USB
Power, VA/W 650/390
Protection from overload, overvoltage, short circuit, overcharge, overheating, low battery
Switching time, ms 2-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.009408
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 4.2
Width, mm 90
Color black
