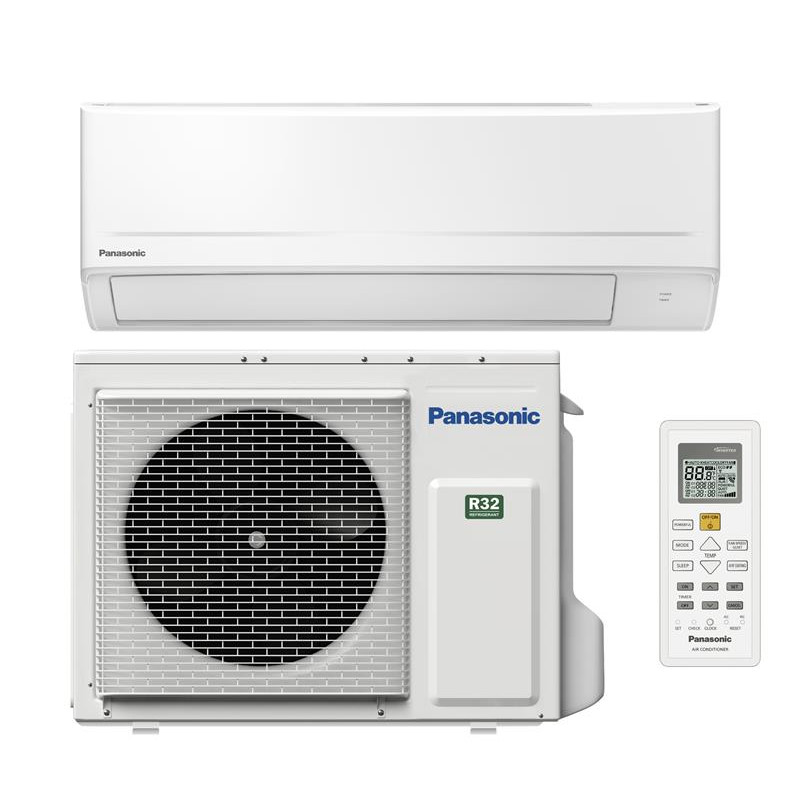

The entire range of Panasonic Super Compact (BZ) wall-mounted indoor units has been carefully adapted for convenient installation and simple daily maintenance.

Easy Installation

Thanks to significant improvements, installation time has been greatly reduced. The models were designed to provide greater stability and strength during installation, with a new integrated support and convenient access to the drain hose, cable inserts, and increased mounting space.

Easy Maintenance

The carefully designed unit, comfortable for both installer and user, features an easily removable front grille for convenient access to the interior. The internal design of the product has also been changed for faster and easier maintenance. Electronics and wiring components are now located on only one side of the device, simplifying maintenance.

TECHNICAL INFORMATION

Cooling Capacity, Nominal (min. - max.), kW: 6.00 (0.98 - 6.50)

EER, Nominal (min. - max.), W/W: 3.03 (3.92 - 2.83)

SEER: 6.40 (A++)

Pdesign (cooling), kW: 6.0

Input Power, Nominal (min. - max.), kW: 1.98 (0.25 - 2.30)

Annual Energy Consumption, kWh: 328

Heating Capacity, Nominal (min. - max.), kW: 6.80 (0.98 - 8.00)

Heating Capacity at -7 °C, kW: 5.1

COP, Nominal (min. - max.), W/W: 3.16 (4.26 - 3.02)

SCOP: 4.10 (A+)

Pdesign at -10 °C, kW: 4.4

Input Power, Nominal (min. - max.), kW: 2.15 (0.23 - 2.65)

Annual Energy Consumption, kWh: 1,502

Indoor Unit CS-BZ60ZKE

Power Supply, V: 230

Recommended Fuse, A: 20

Connection Indoor / Outdoor, mm²: 4x2.5

Air Flow, Cooling / Heating, m³/min: 12.7 / 13.6

Moisture Removal Volume, l/h: 3.3

Sound Pressure

Cooling (Hi/Lo/Q-Lo), dB(A): 45 / 37 / 34

Heating (Hi / Lo / Q-Lo), dB(A): 45 / 37 / 34

Dimensions, H x W x D, mm: 290 x 779 x 209

Net Weight, kg: 9

Outdoor Unit CU-BZ60ZKE

Air Flow, Cooling / Heating, m³/min: 42.6 / 39.2

Sound Pressure, Cooling / Heating (Hi), dB(A): 50 / 50

Dimensions, H x W x D, mm: 695 x 875 x 320

Net Weight, kg: 40

Piping Diameter

Liquid, inch, (mm): 1/4 (6.35)

Gas, inch (mm): 1/2 (12.70)

Pipe Length Range, m: 3 ~ 30

Height Difference (in/out), m: 15

Pre-charged Pipe Length, m: 7.5

Additional Gas Quantity, g/m: 15

Refrigerant (R32) / CO2 equivalent, kg/t: 1.11 / 0.75

Operating Range

Cooling, Min ~ Max, °C: -10 ~ +43

Heating, Min ~ Max, °C: -15 ~ +24
