A mini 6kW solar power station for a dacha or home can provide:

• autonomous electricity for electrical equipment during daylight hours;
• backup power for household and computer equipment in case of prolonged emergency power outages.

Why is a "turnkey" solar power station an effective alternative to fuel generators and other backup power sources?

• The system does not require additional technical maintenance and does not need fuel, as the sun is an inexhaustible source of electricity;
• The solar power station equipment connects to the apartment/house/office power grid. Switching to backup power mode does not require much time or effort;
• Convenient system for monitoring operating parameters;
• Long-term operation of equipment without repair or maintenance;
• Ability to offset utility costs by consuming electricity from solar panels during daylight hours.

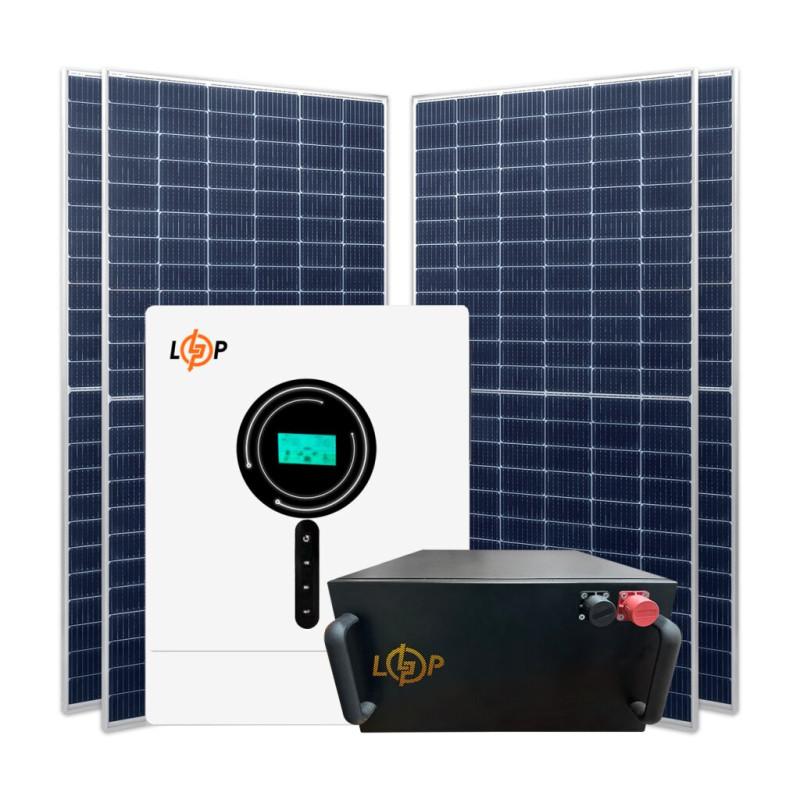

6kW Solar Power Station - includes:

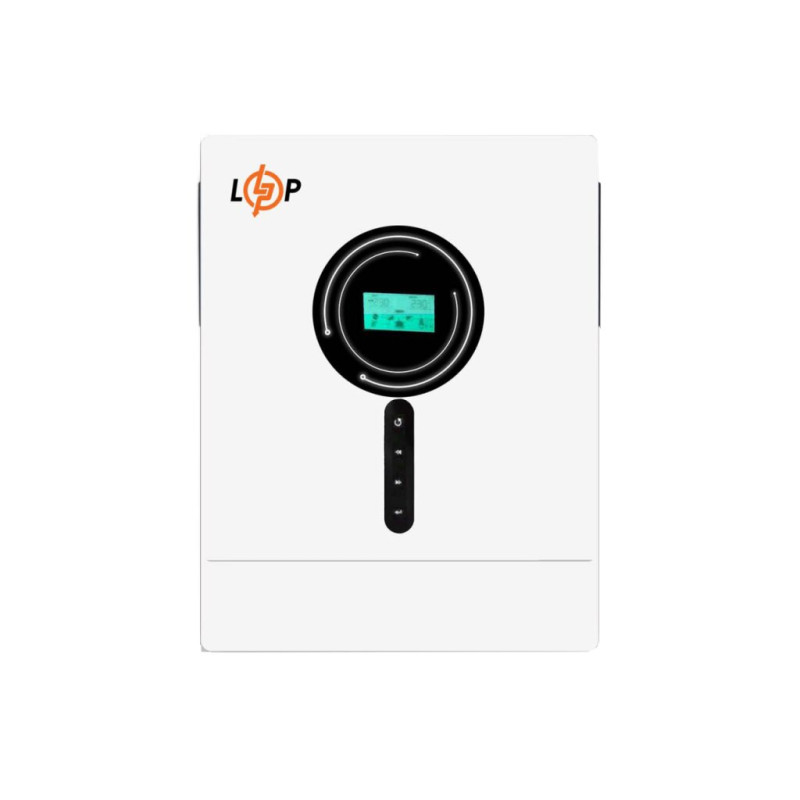

• Hybrid Solar Inverter (UPS) LPW-VM II Elite 6000VA (6000W) 48V 120A MPPT 60-450V ON-OFF GRID - 1 pc.

• Solar Panel LP Longi Solar Half-Cell 550W (35 prof. monocrystalline) - 10 pcs.

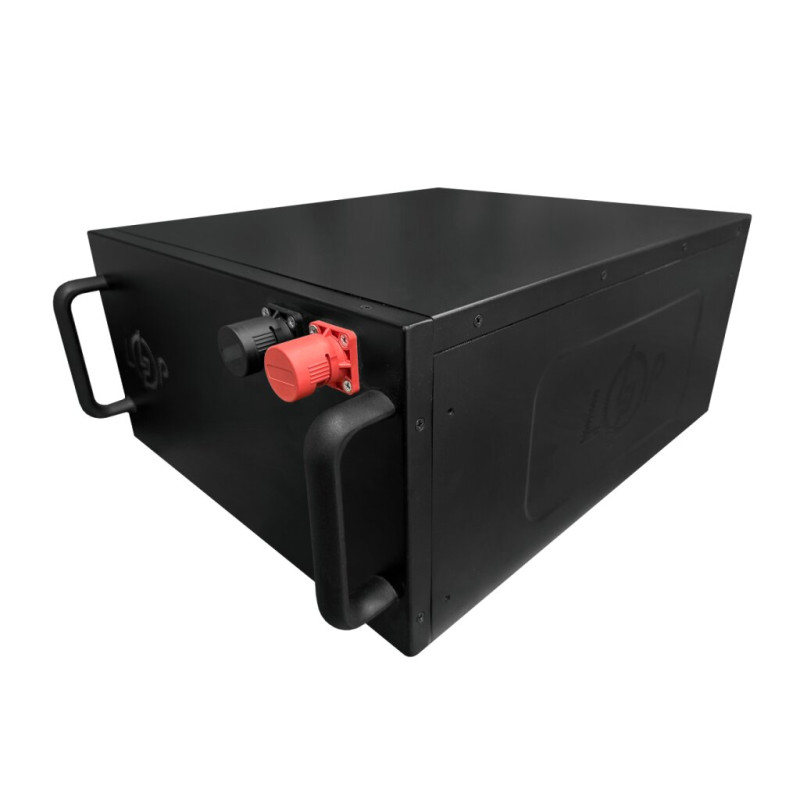

• Battery LP LiFePO4 51.2V - 100 Ah (5120Wh) (BMS 100A/50A) metal Smart BT - 1 pc.

• C Solar Guide Profile 41x41x1.5 mm - 24 pcs.

• C Solar Profile Connector 41x41x1.5 mm - 12 pcs.

• Cylindrical head screw with internal hexagon M8-16 - 24 pcs.

• Flange serrated nut M8 - 24 pcs.

• Mid-clamp for mounting solar panels 35 mm P - 16 pcs.

• End clamp for mounting solar panels 35 mm - 8 pcs.

• Cylindrical head screw with internal hexagon M8-35 - 24 pcs.

• Mounting nut M8 with retainer for mounting solar panels - 24 pcs.

• Copper wire for connecting battery 25 sq. mm - 100 cm (with terminals) red - 1 pc.

• Copper wire for connecting battery 25 sq. mm - 100 cm (with terminals) black - 1 pc.

• Cable for solar power stations H1Z2Z2-K 1*4 30 m black (male) - 1 pc.

• Cable for solar power stations H1Z2Z2-K 1*4 30 m red (female) - 1 pc.

• Wooden box with lid for solar power station - 1 pc.

• 1690890 Disconnector ETI KVL 00 1P 160A (Terminals M8-M8) - 1 pc.

• 4110084 Fuse ETI NH-00 Battery 160A 80V DC - 1 pc.

Solar power station: kit for Ukraine, how is the price formed?

The cost of a solar power station kit for a home depends on the type of battery.

6kW "Premium" category "turnkey" solar power stations include lithium iron phosphate batteries (LiFePO4) with a capacity of 100 Ah.

Alternative energy sources for home: advantages of using LiFePO4 batteries

• The charge-discharge cycle life of LiFePO4 is 7000. You won't have to think about replacing the battery for at least 10 years.
• It takes no more than 2 hours to fully charge a lithium iron phosphate battery. In addition, the battery has no "memory effect", meaning the battery can be charged at any time without waiting for a full discharge.
• The capacity loss of lithium iron phosphate batteries is about 20% when stored for more than 10 years. In addition, this type of battery can remain in a discharged state for a long time without serious consequences for further operation.

Can I install a home solar power station myself?

The solar photo modules included in the kit are fully ready for self-assembly. You do not need to install additional protection for the solar panels.

We recommend placing solar panels in areas with plenty of sunlight. Avoid shadows from trees or buildings falling on the working area of the photocells.

Solar panels can be mounted on the roof, on the ground, or on special welded structures. When installing photo modules, orient them to the south.

The mounting of the load-bearing structures of the solar panels is carried out using appropriate fasteners on aluminum frames. Mounting holes are provided on the back of the frames.

Observe polarity when connecting all DC electrical connections. Carefully check the polarity of the solar panels and batteries with a tester before installation.

For safe operation of the solar power station, install grounding for the mounting structures, casing, and inverter.
