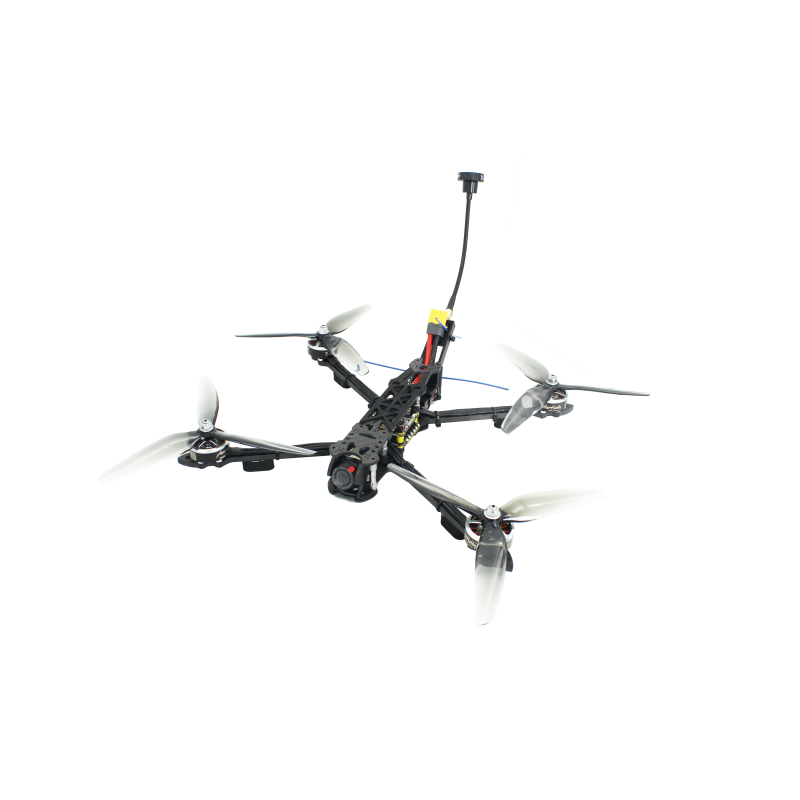

FPV Drone Kit 7″ (Variant 3) 1500TVL (Twilight Camera) + KASHTAN 6s2p 8400 mAh Battery

Kit Description

This ready-to-fly FPV drone kit 7″ (Variant 3) from KASHTAN combines a reliable hardware base and quality electronics for day and twilight flights. The kit includes a RunCam Night Eagle 3 v2 FPV camera with 1500TVL resolution, providing a clear image in low-light conditions, proven power modules, and a flight controller with an ESC that supports 3-6s configurations. The kit has undergone thorough testing and can be adapted to individual needs — contact our managers for customization.

Current Configuration:

• Flight Controller: SpeedyBee F405 V3 with ESC 50A 3-6s
• Frame: Carbon Fiber Mark4 7 295 mm
• Video Transmitter (VTX): RUSH TANK Max Solo 5.8G 25/500/1000/2500 mW
• Radio Receiver: BetaFPV SuperD ELRS Diversity 915 MHz
• Propellers: HQProp 7040 (4 pcs) (7X4X3)
• Antenna: FOXEER Pagoda PRO 5.8GHz RHCP SMA L150 mm
• Camera: RunCam Night Eagle 3 v2 FPV Night Camera 1500TVL
• Motors: DroneHub 2807 1300 kv

Features and Benefits:

• Quality Build: Mark4 7 carbon fiber frame and selected components ensure structural rigidity and durability during intense maneuvers.
• Enhanced Night Sensitivity: The RunCam Night Eagle 3 v2 camera with 1500TVL allows for stable video transmission at dusk and night.
• Modularity and Upgradeability: Ability to replace the flight controller, VTX, antenna, or motors to adapt to your flying style.
• Testing and Support: Each kit undergoes testing of the video link, power components, and control; our managers provide assistance with setup and accessory selection.

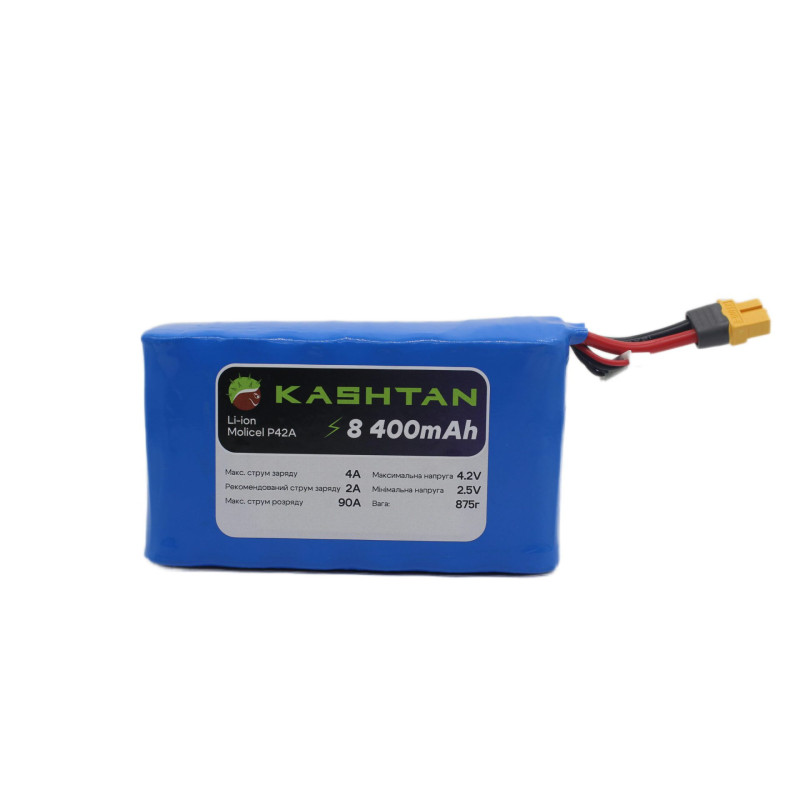

KASHTAN 6s2p 8400 mAh Battery for FPV

The KASHTAN 6s2p 8400 mAh battery pack, based on Molicel P42A Li-ion cells, is designed for long flights and intense discharges. The design features a durable 3D-printed frame and copper-welded contacts for improved conductivity and reliability under peak loads.

Battery Specifications:

• Max Charge Current: 4 A
• Recommended Charge Current: 2 A
• Max Discharge Current: 90 A
• Voltage: 4.2 V (max), 2.5 V (min)
• Weight: 875 g
• Size: 5×14×7.5 cm
• Power Cable: 12 AWG
• Connector: XT60H-F
• Balance Cable: JST-XH 6S
• Features: 3D-printed frame for durability; copper-welded cells for better conductivity.

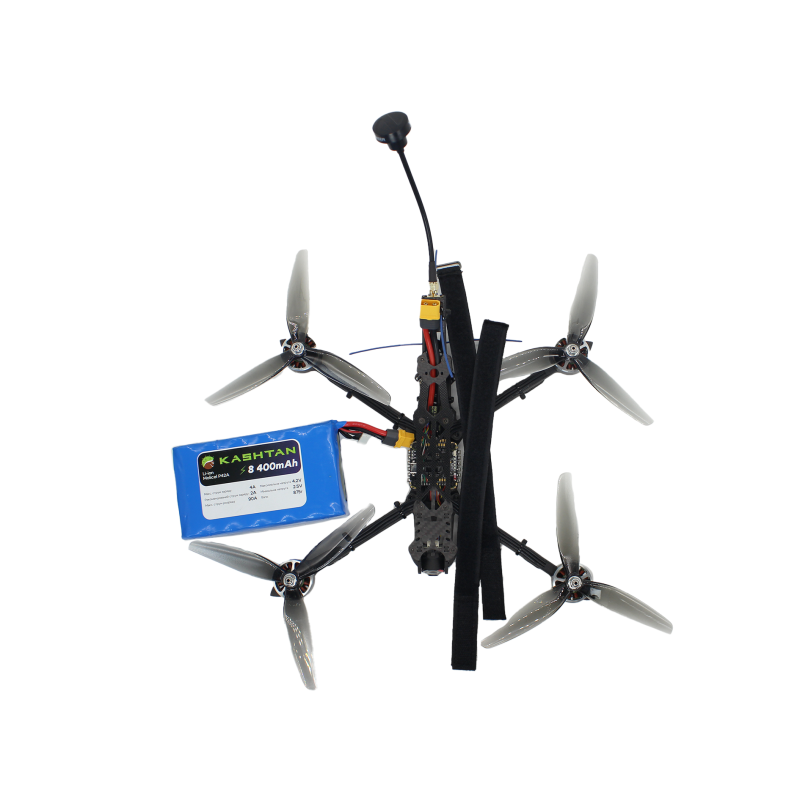

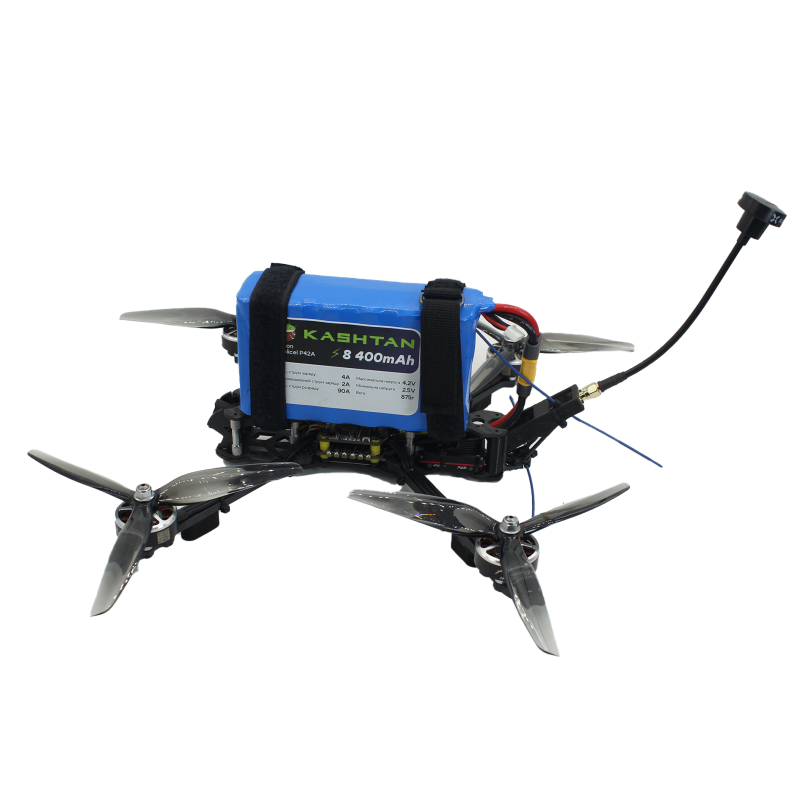

Kit Includes:

• FPV Drone 7″ (Variant 3)
• KASHTAN 6s2p 8400 mAh Battery
• Straps 330 mm

Brand: KASHTAN. Product Type: Drones & Quadcopters > FPV Drones. The kit is suitable for experienced pilots and those planning to transition to twilight and night flights, providing stable video transmission, powerful energy delivery, and upgrade options.
