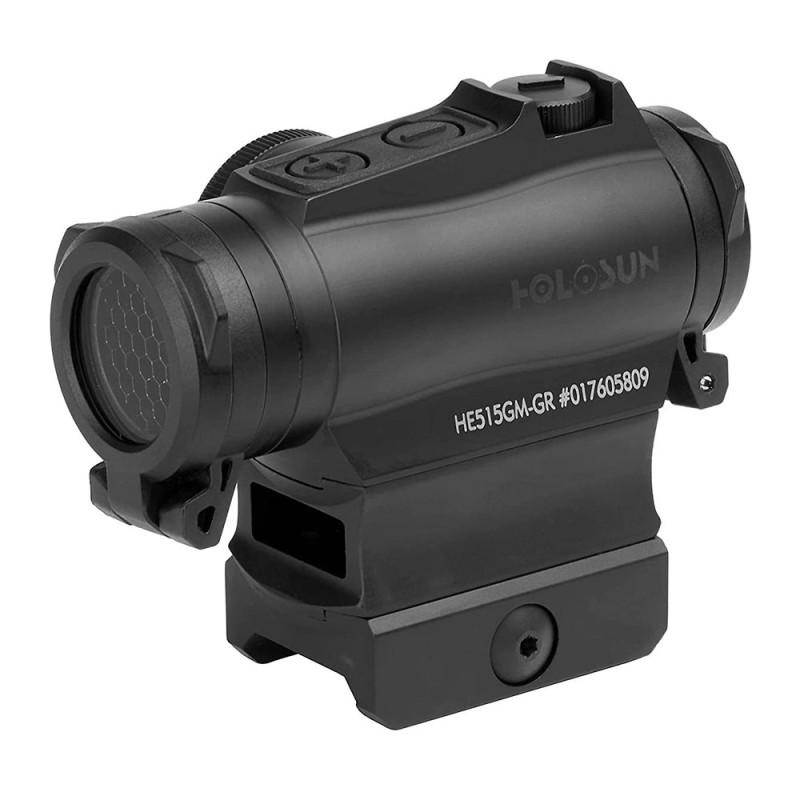

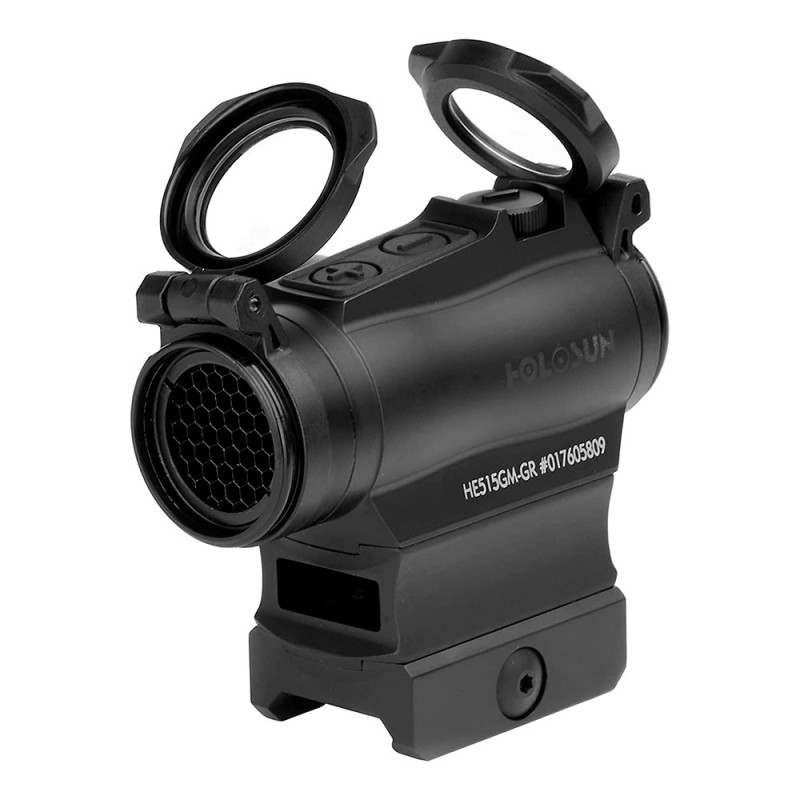

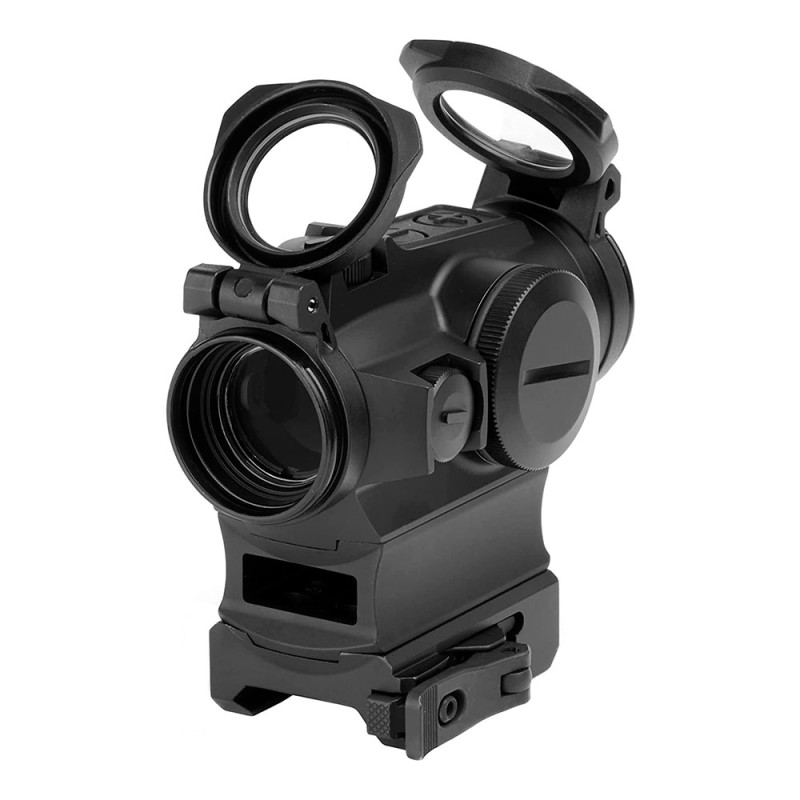

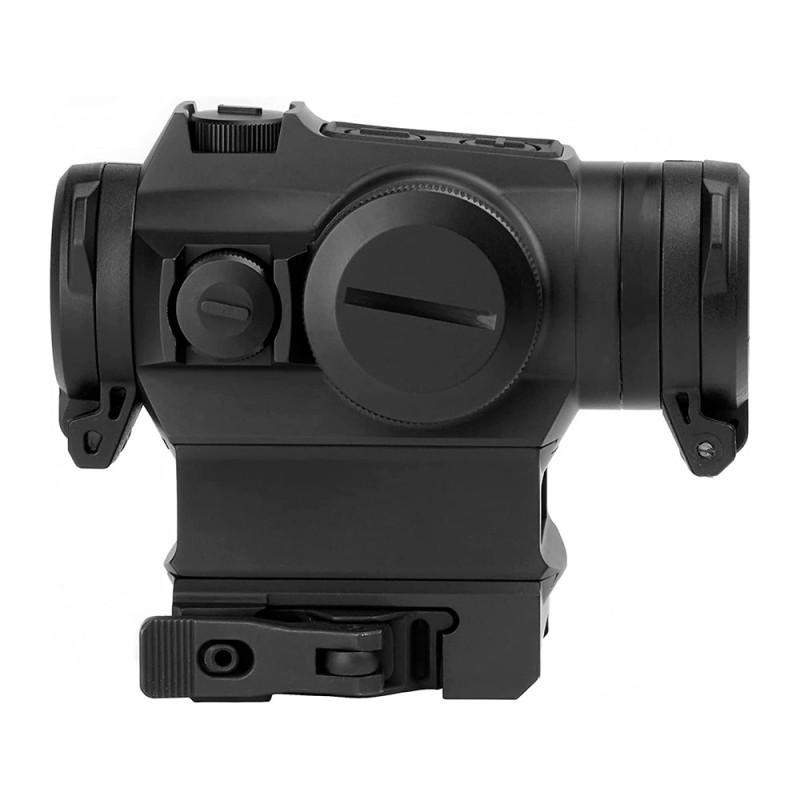

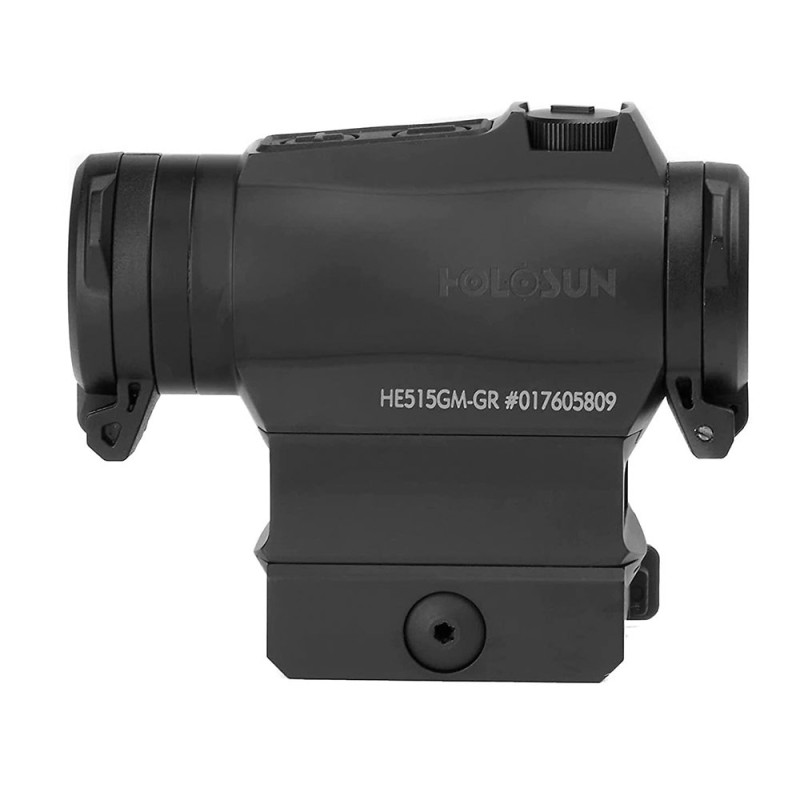

Red-dot sight HOLOSUN HE515GM-GR from the HOLOSUN brand — a modern closed reflex sight with a 20 mm objective lens diameter and fully multi-coated optics. This model is designed for operational and tactical use, combining high reliability, low weight, and quick installation thanks to the Quick Detach mount for Weaver/Picatinny rails. Category: Military Equipment > Optics > Red-dot Sights.

Description and Key Features

The HOLOSUN HE515GM-GR features Holosun's proprietary green Super LED illumination with a wavelength of 540 nm, ensuring comfortable perception of the reticle. The Multiple Reticle System (M.R.S.) allows selection of aiming modes: 2 MOA dot or 2 MOA dot in a 65 MOA circle. Shake Awake™ technology automatically activates illumination upon motion detection and deactivates it when stationary, significantly reducing power consumption; powered by a CR2032 battery, it provides up to 50,000 hours of operation in single dot mode and up to 20,000 hours for the dot in a circle. Illumination intensity has 12 levels (10DL + 2NV).

Design Features

• Sight type: red-dot (reflex), closed housing
• Integrated Shake Awake™ motion sensor
• Multiple Reticle System (M.R.S.): 2 MOA dot; 2 MOA dot in a 65 MOA circle
• Multi-layer coated optics (Multilayer Reflective Glass / Fully Multi-Coated)
• Super LED illumination with 12 intensity levels (10DL + 2NV)
• Housing gas filling: nitrogen to prevent fogging
• Killflash anti-glare grid to reduce reflections
• Flip-up transparent caps on objective and eyepiece
• Convenient rotary-type battery compartment (CR2032)
• Adjustment turrets with protective caps for windage and elevation adjustments
• Quick-release design with Quick Detach mount (Weaver/Picatinny)
• IPX8 rated housing protection
• Green reticle color, more comfortable for the eyes
• Recoil resistance: 1000 G

Technical Specifications

• Housing type: closed
• Mount: Weaver/Picatinny (Quick Detach)
• Lens size: 20 mm
• Reticle: 2 MOA dot; 2 MOA dot in a 65 MOA circle
• Reticle color: green
• Illumination wavelength: 540 nm
• Illumination intensity: 12 levels (10DL + 2NV)
• Recoil resistance: 1000 G
• Coating: Fully Multi-Coated
• Gas filling: yes (nitrogen)
• Power source: CR2032
• Battery life: 50,000 hours (dot), 20,000 hours (dot in circle)
• Housing material: 7075 T6 aluminum
• Finish: hard anodizing
• Adjustment range: ±50 MOA
• Click value: 0.5 MOA

Package Contents

• Red-dot sight (with high mount)
• Battery: CR2032
• Tool kit
• Manual
• Optics cleaning cloth

Dimensions and Weight

• Sight dimensions: 83 x 68 x 38 mm (with high mount)
• Sight weight: 106 g
• Sight weight with high mount: 199 g
• Package dimensions: 123 x 92 x 80 mm
• Package weight: 385 g

The HOLOSUN HE515GM-GR — an excellent choice for those seeking a reliable red-dot sight with long battery life, flexible reticle modes, and a durable design. The model combines the lightness and strength of a 7075 T6 aluminum housing with modern electronic solutions: Shake Awake™, Multiple Reticle System, high-quality coating, and Killflash protection. Thanks to the Quick Detach mount and compact size, the sight is suitable for both hunting and tactical use. Reliable operation under sharp recoil up to 1000 G, IPX8 waterproofing, and long power reserve make the HE515GM-GR a practical solution for use in various conditions.
