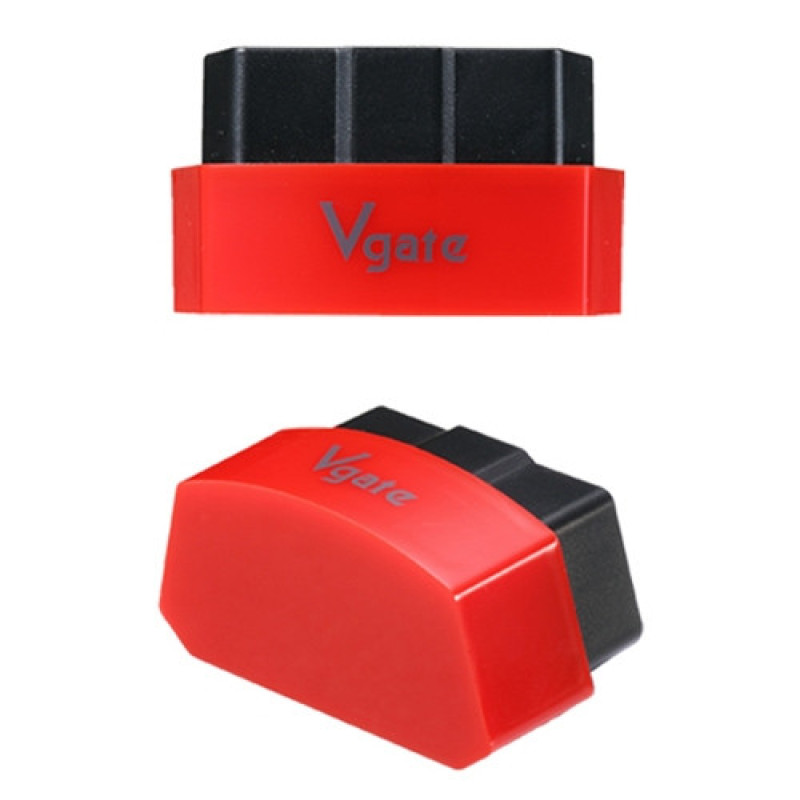

Bluetooth micro scanner Vgate iCar 3 ELM327 - the most convenient tool for car diagnostics. Built on reliable and ultra-fast ARM chips. The Apple-like design and packaging subtly hint not only at compatibility with all types of iPhones and iPads, but also at compliance with the notorious quality standard of Apple devices. The miniature size of the scanner and the standby mode function mean you'll never need to remove the scanner from the connector.

Allows clearing errors and turning off the MIL.

Reads diagnostic trouble codes (standard and manufacturer-specific codes), displays their meanings (over 3000 codes in the database).

Displays values: engine RPM, engine load, coolant temperature, fuel system status, vehicle speed, short-term and long-term fuel trim, absolute air pressure, ignition timing, intake air temperature, mass air flow, throttle position, etc.

Supports all OBDII protocols:

0. Automatic
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A. SAE J1939 CAN (29bit ID, 250* Kbaud)
B. USER1 CAN (11* bit ID, 125* Kbaud)
C. USER2 CAN (11* bit ID, 50* kbaud)

* default settings (user adjustable)

Works with all OBD2 (from 1996 in the USA) and EOBD cars (gasoline from 2001, diesel from 2003/2004 in Europe).

Software support for Android, Windows, iOS
Bluetooth range: up to 10 m
Scanner size: 4.7 x 2.4 x 2.8 cm
Includes software disc () and user manual

Scanner color may vary depending on the batch.
