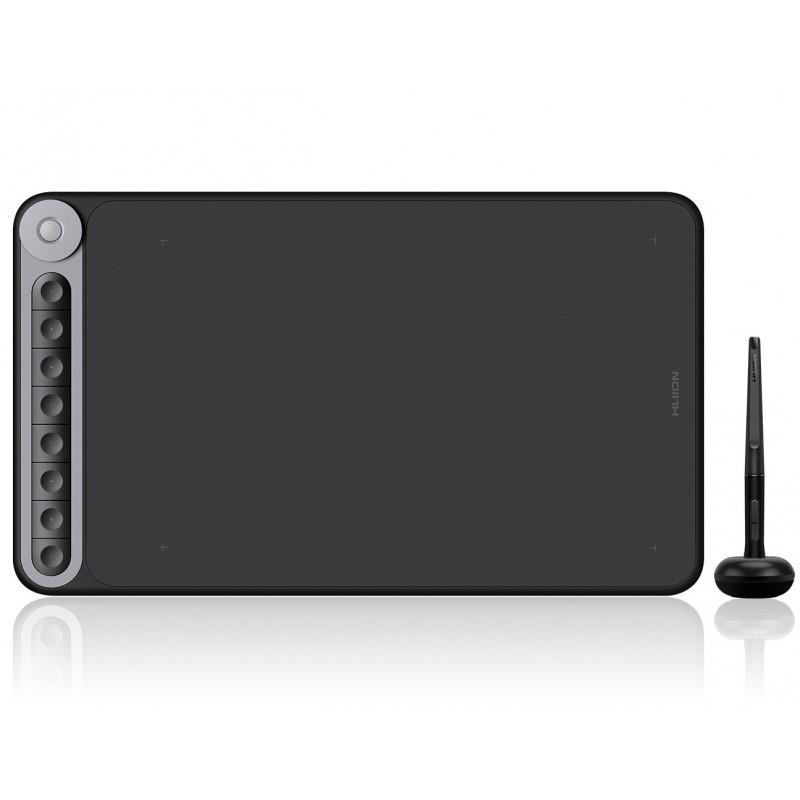

The Huion Inspiroy Dial Q620M graphics tablet is an all-new model with a wireless module, a convenient multifunctional dial controller, and a stylish design.

Creative Design
Made of high-quality ABS plastic and metal, the Huion Q620M features exceptional aesthetic design and exquisite craftsmanship. The device is only 8 mm thick and weighs 666 grams. In addition, the 10.5x6.5-inch active area provides ample space for expressing creative ideas.

Multifunctional Dial Controller
The Dial Controller offers users creative shortcuts and compatibility with the Windows Radial Controller protocol. Dial Controller functions can be programmed by default in the driver, while Windows Radial functions will be activated after selecting "Use Windows Radial" via the driver. A long press on the key in the center of the Dial Controller is used to activate the tool menu. Users can use the Dial Controller to adjust brush size, select colors, move between objects, and more.

Charge Indicator
The 8 express keys have built-in LED indicators that can show battery charge, low charge level, or real-time power consumption. When you are working on the pen tablet, the 8 LED indicators will light up in sequence, and when the tablet is turned off, they will go out.

Create Freely
The battery-free digital pen PW500 is designed with a rubberized body, providing a more natural and realistic drawing experience.

Technical Specifications
The ±60° tilt support is designed to make the digital pen work as naturally as a regular pencil when drawing on paper. Tilt the pen to start shading without losing pressure sensitivity. The industry-leading 266PPS report rate and 8192 levels of pressure sensitivity provide a more accurate and professional result.

Connectivity with Android Devices
The Inspiroy Dial Q620M supports wireless connectivity with Android devices to provide users with even greater convenience. * A wired connection between the tablet and phone will charge the graphics tablet from your device, so your smartphone's battery may drain quickly.

Battery Life
Thanks to the 2.4G USB wireless module, this graphics tablet frees you from using cables for data transfer, allowing for free-form drawing without any restrictions. The wireless operating range is 5-10 meters. The Inspiroy Dial can be charged from a 5V - 500mA or 5V - 1A power source.

Easy to Use and Connect
The convenient and reliable Type-C interface solves the problem faced by USB users, as USB cables can only be connected in one way.

Work with Various Devices
The Huion Inspiroy Dial Q620M is compatible with Android, Windows, and macOS operating systems, working with PCs, laptops, Android phones, and tablets.

Pen Technology: Battery-Free Electromagnetic Resonance

Keys: 8 programmable keys + dial

Dimensions: 375.5 × 220.4 × 8 mm

Working Area (computer): 266.7 x 166.7 mm (10.5 x 6.56 inches)

Working Area (mobile phone): 104.2 x 166.7 mm

Net Weight: 666 g

Pressure Levels: 8192 levels

Pen Resolution: 5080 LPI

Report Rate: 266 PPS

Accuracy: ±0.3 mm

Sensing Height: 10 mm

Tilt: ±60°

Automatic Sleep Mode: 15 min

Wireless Connection: USB 2.4 G

Communication Distance: 5-10 m (depends on environmental conditions)

Battery Capacity: 1100 mAh

Power Consumption: 0.3 W

Charging Time 5V 1A: approx. 1.2 hours; 5V 0.5A: approx. 3 hours

Battery Life: approx. 20 hours

Interface: USB-C

OS Support: Windows 7 or later, macOS 10.12 or later, Android 6.0 or later

Digital Pen: PW500

Color: Black

Package Contents: tablet, battery-free pen, wireless receiver, USB-C cable, USB-C adapter, pen holder, 10 pen nibs, pen clip, quick start guide
