Freedom-10F FPV Kamikaze Drone by WINGED LIBERTY FACTORY

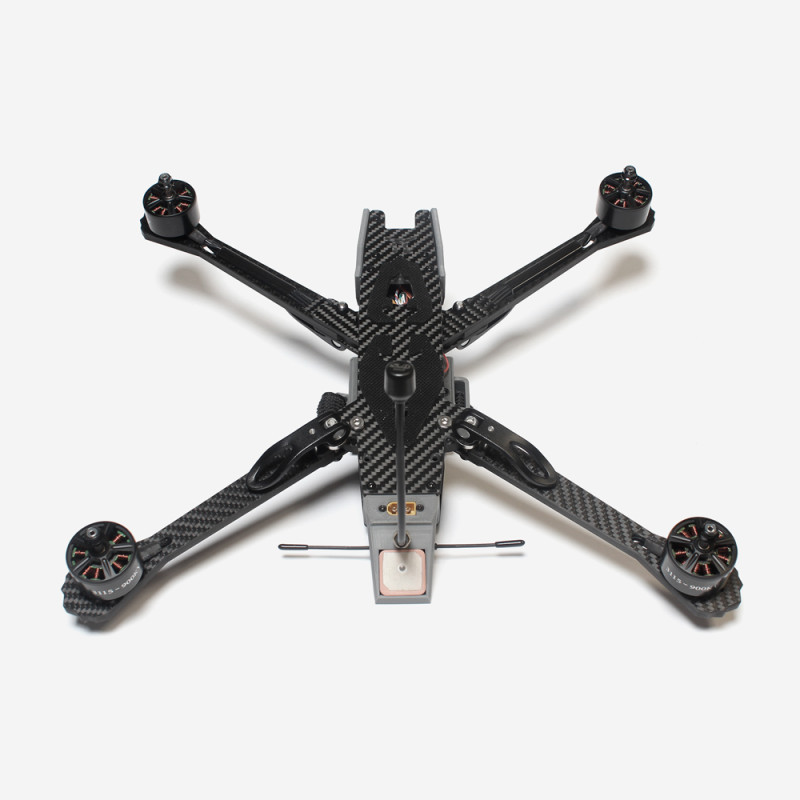

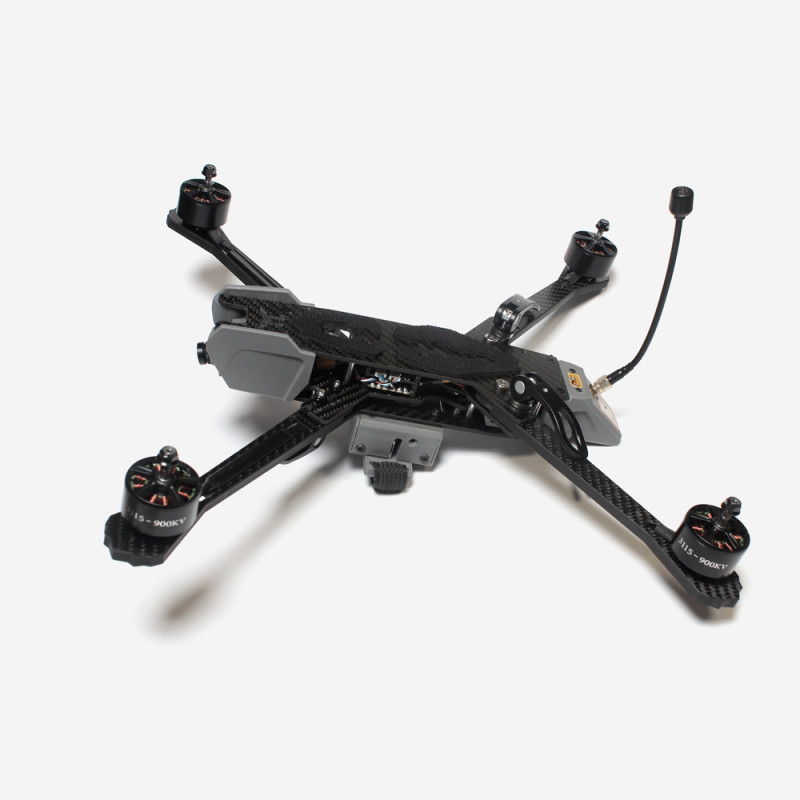

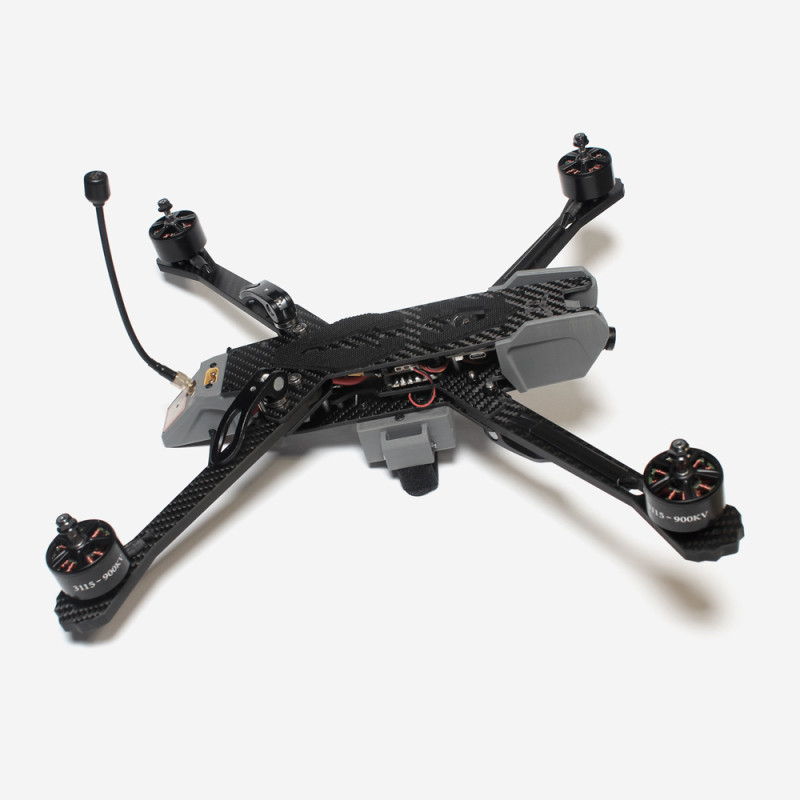

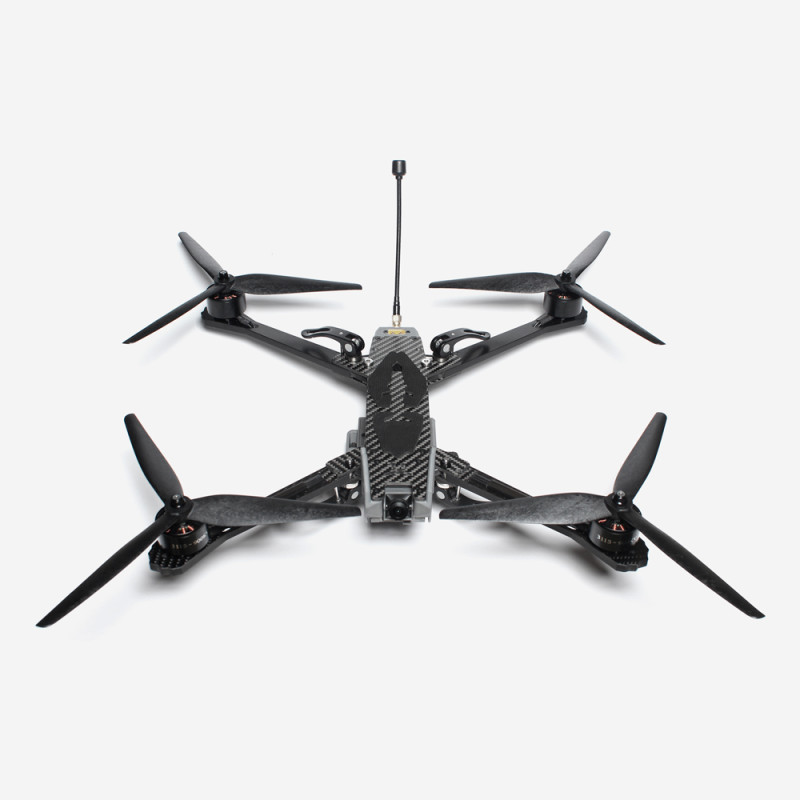

The Freedom-10F FPV kamikaze drone is a tactical and versatile aircraft from the WINGED LIBERTY FACTORY brand, designed as an alternative to the DJI Mavic with enhanced combat capabilities. This sophisticated 10" carbon quadcopter combines a compact folding frame, powerful electronics, a high-sensitivity camera, and a high-power VTX, making it suitable for complex field missions and carrying additional payloads of up to 4 kg.

Key Features

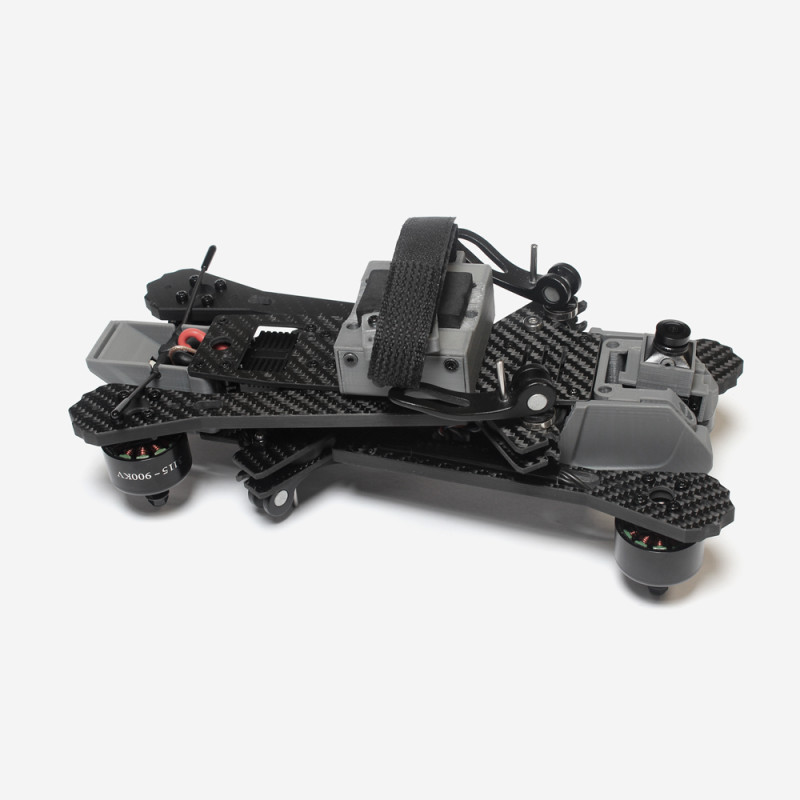

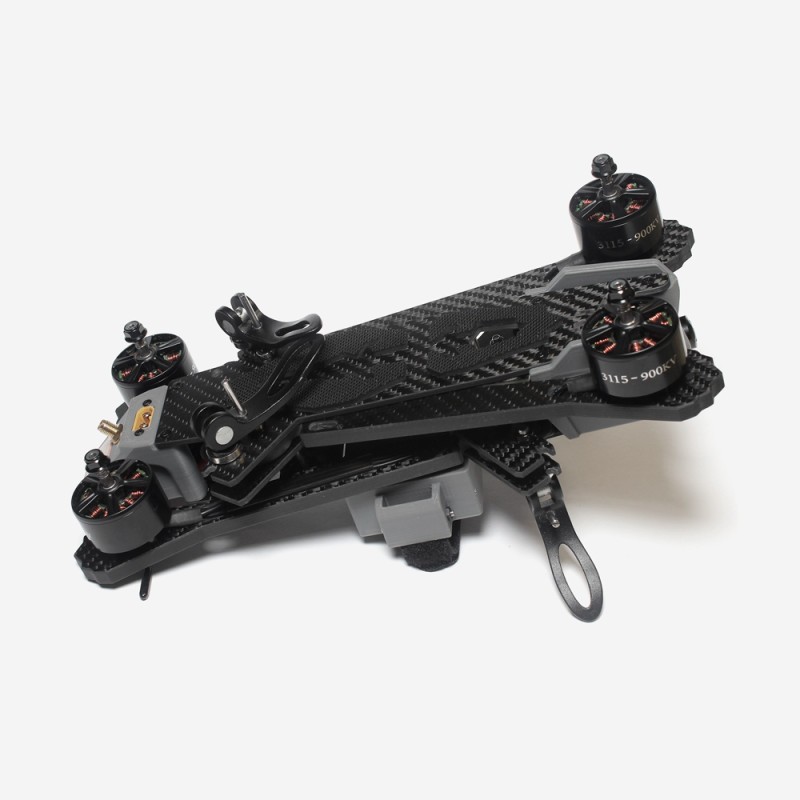

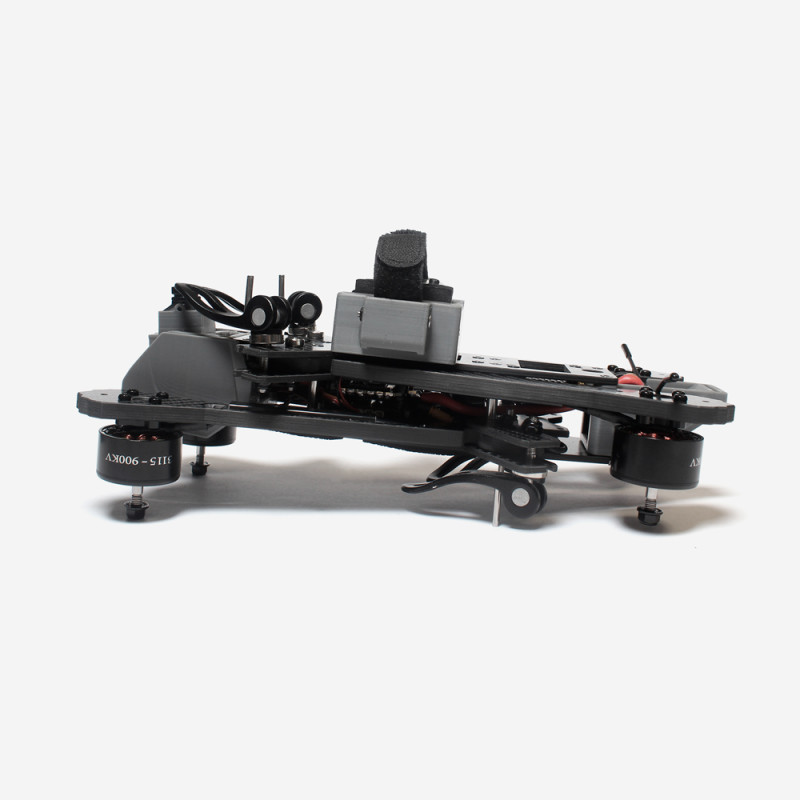

• DJI Mavic alternative: WLF X10F carbon 10" folding frame with foldable arms for significant size reduction.
• WLF MD2 swivel camera (1200TVL, 16:9, 0.001Lux) and universal drop mechanism, controlled by toggles for quick and precise operation.
• Payload capacity up to 4 kg — ability to suspend additional sensors or combat payloads.
• Serial production from factory-direct components to reduce costs and increase reliability.
• Recommended batteries: 6s2p 8400mAh or 6s3p 12600mAh for optimal performance and extended flight time.
• F722 flight controller and 100A ESC for increased power and stability in extreme conditions.

Specification

Electronics and Firmware

Firmware: Betaflight. FC: WLF F7 L3. MCU: STM32F722. Gyroscope: ICM42688. OSD: AT7456E. Black box: built-in 8GB SD card. BEC output: 10V/3A, 5V/3A. Interfaces: 5× UARTs, 4× Softserial, 1× I2C, 4× RGB.

ESC: WLF 100A AM32 (32-bit F4, 120MHz main frequency, up to 128KHz PWM Packet). Throttle signal support: Dshot150-1200, Multishot, Oneshot125. Built-in current sensor. Power cord: XT60.

Receivers and Power

Receivers: PNP / TBS NanoRX / ELRS 915 / ELRS 720-1020 MHz. Recommended battery: 6s2p 8400mAh or 6s3p 12600mAh. Estimated flight time depending on payload and battery: 16 to 43 minutes.

Package Contents

• 1 × "Freedom-10" 6S Analog BNF drone
• 1 × antenna
• 4 × propellers
• 2 × battery straps

The Freedom-10F FPV drone combines mobility, power, and modularity: a 10" folding carbon frame, four WLF 3115 900kv motors, reliable 100A ESCs, a high-sensitivity WLF MD2 camera, and a Diatone Mamba Ultra 2500 mW VTX ensure stable video transmission and effective operation in field conditions. Modular electronics with FC WLF F7 L3, MCU STM32F722, and ICM42688 gyroscope, along with Betaflight firmware, allow for fine-tuning for specific tasks, while the built-in 8GB Black box simplifies flight analysis.

The Freedom-10F is an ideal choice for professionals who value reliability, power, and the ability to upgrade the system.
