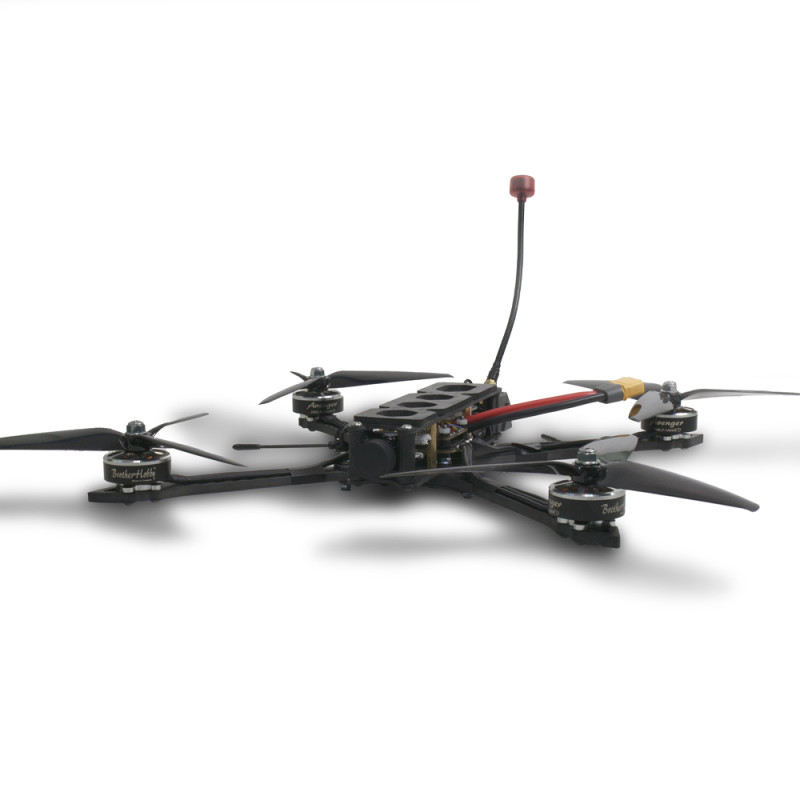

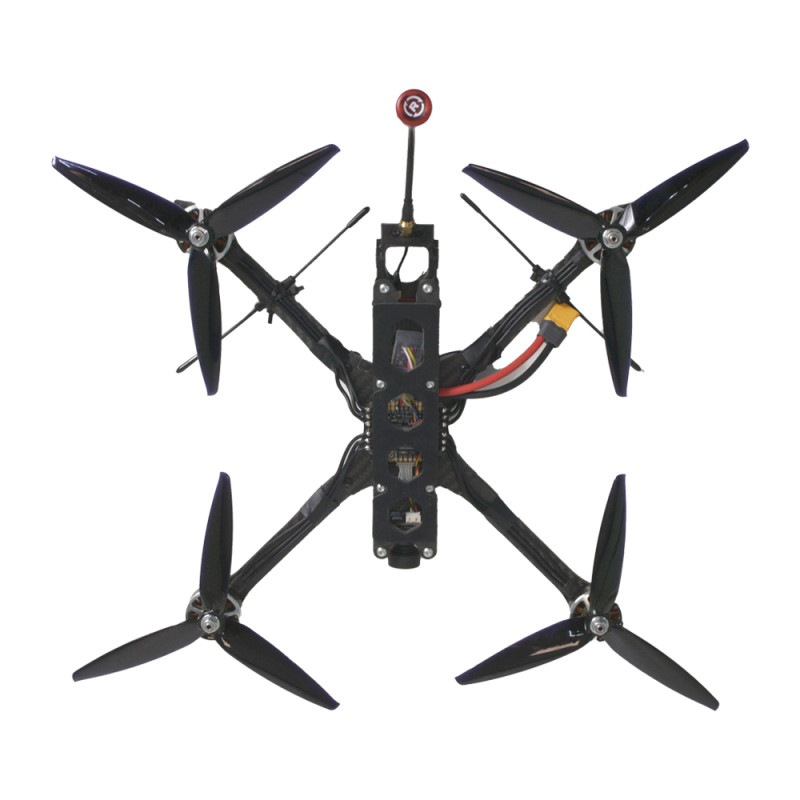

Amaga Night 7 Drone — Camera: twilight, without battery. Brand: Magura. Category: Drones and Quadcopters > FPV Drones.
Description and Purpose
Amaga Night 7 is a professional 7-inch FPV drone designed for night and twilight flights. The model comes without a battery and is equipped with a highly sensitive Foxeer Micro Night Cat 3 1200TVL twilight camera, which provides a clear image in low light. The design and selection of components are focused on reliability, high thrust, and the ability to install additional payload.
Components of the Amaga Night 7 Brother 7-inch FPV Drone
| Part | Name |
| Frame | Amaga 7 Carbon rigid frame of own production |
| Motors | BrotherHobby LPD 2806.5 1300KV with max thrust 2000g |
| Stack | Galichina v1 (7850) |
| Video Transmitter VTX | RUSH Tank MAX Solo 5.8G 25/500/1000/2500mW |
| Video Antenna | Rush Cherry 5.8G RHCP SMA straight connector 160mm |
| Camera | Foxeer Micro Night Cat 3 1200TVL |
| Radio Receiver RX | Happymodel ES900 DUAL RX ELRS Diversity 868/915MHz |
| Propellers | Gemfan Flash Army 7040-3 |
| Battery Straps | Wide 35x40 |
| Payload Mount | + |
| Capacitor | Panasonic 820 Uf |
Advantages and Technical Features
The Amaga 7 carbon frame ensures rigidity with minimal weight, which is important for maneuverability and lift capacity. BrotherHobby LPD 2806.5 1300KV motors provide a maximum thrust of up to 2000g each, allowing for heavier payloads and ensuring stability in fast maneuvers. The RUSH Tank MAX Solo VTX with adjustable power 25/500/1000/2500 mW allows selecting the optimal video transmission mode for different distances and conditions, while the Rush Cherry 5.8G RHCP antenna with a straight SMA connector improves video signal quality. The Happymodel ES900 DUAL RX receiver with ELRS support and diversity antennas operates in the 868/915MHz bands and provides stable control, reducing the risk of signal loss over long distances.
Camera and Video Communication
Foxeer Micro Night Cat 3 1200TVL is a specialized camera for low-light shooting, providing a clear image in twilight and at night. The RUSH Tank MAX Solo video transmitter in combination with the Rush Cherry antenna provides reliable CVBS video transmission at 5.8G with a wide selection of power outputs, which is important for various flight scenarios.
Completeness
| Component Name, Unit of Measure | Quantity |
| 1 Frame: 7 inches, carbon rigid, own production or analog, pc. | 1 |
| 2 Electric brushless motor: size A2807, power 1300KV, max thrust up to 2000g, pc. | 4 |
| 3 Electronic speed controller (ESC): current 55A * 4 (for 4 pcs), pc. | 1 |
| 4 Propeller: size 70*40*3 or 70*35*3 (set of three-blade propellers 4 pcs), pc. | 2 |
| 5 Antenna for video transmitter: RushCherry, Lollipop, Pagoda, V shape types, frequency range (1.2-1.3) GHz; (4.9 – 6.2) GHz, RHCP polarization, SMA straight connector, size (100-160) mm or analog, pc. | 1 |
| 6 Video camera: analog CVBS signal, resolution not less than 1200 TVL, sensor matrix not less than 1/3″, pc. | 1 |
| 7 Flight controller: based on MCU STM32F405 chip, (3.3 – 9) V, 5 A, pc. | 1 |
| 8 Control signal receiver: ELRS or CrossFire protocol, for one or two antennas, pc. | 1 |
| 9 Video transmitter: CVBS PAL / NTSC video format, power from (25 – 3500) mW, pc. | 1 |
| 10 Battery straps, pc. | 1 |
| 11 Plastic ties for mounting "Warhead", pc. | 4 |
Recommendations and Additional Options
Amaga Night 7 is suitable for experienced pilots and teams requiring a combination of power, reliability, and night FPV flight capabilities. The configuration allows flexible adjustment of the ESC, VTX, and receiver, as well as the installation of additional payload mounts. Please note: the battery is not included (without battery), so you need to purchase a compatible battery of appropriate capacity and size with 35x40 mounts separately.
If modifications are needed (a different camera, different propellers, or a VTX with different output powers), our team will help you select the optimal components for your tasks and budget.
