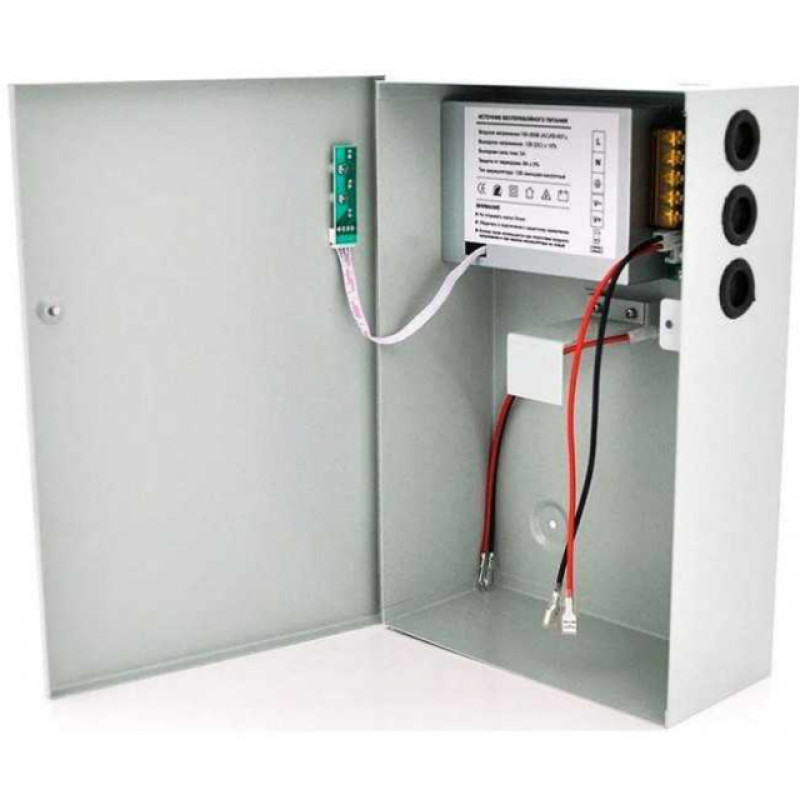

The UPS TB-0301 (VP3.1N NEW) uninterruptible power supply from U-tex is a compact and reliable 12V 3A switching uninterruptible power supply in a metal enclosure, designed to ensure stable operation of devices with a 12V input voltage. The product belongs to the category: Energy Independence > Uninterruptible Power Supplies and is ideal for CCTV cameras, video recorders (DVR, NVR), network equipment, security alarms, electronic locks, and other equipment requiring continuous power.

Features and Benefits

The device's metal enclosure allows for the installation of 7-9 Ah rechargeable batteries (12V battery of the required capacity sold separately). Thanks to the built-in automatic switch to backup power from the battery, the UPS TB-0301 ensures uninterrupted operation of connected devices when the main power grid is disconnected. The device is equipped with a set of protections and operating mode indicators, making it easy to install and operate.

Areas of Application

• Video surveillance systems (camera + recorder);
• Network equipment and routers;
• Security and access systems (alarms, electronic locks);
• Other electronics with 12V input voltage.

Main Characteristics

• Input voltage: 190 - 240 V AC (AC 190 - 240V);
• Number of outputs: 1;
• Output voltage: 12 V ± 5%;
• Output current: 3 A;
• U-TEX UPS TB-0301 Power: 36 W;
• Terminal connection;
• Output short-circuit protection;
• Automatic switch to backup power from the battery (AKB) when the power grid is disconnected;
• Protection against deep discharge of the battery, optimal battery charging when mains voltage is present;
• Protection against battery overcharge;
• Maximum battery charging current: 0.4 - 0.65 A;
• Electronic protection of outputs against overcurrent, including short circuit, with restoration of normal operation after overload elimination;
• Overheat protection;
• Automatic restoration of output voltage after eliminating the cause of the short circuit;
• Light indication of operating modes (LEDs): mains voltage presence, output voltage presence, battery charge;
• Metal enclosure (box);
• Space for 12V 7 - 9 Ah battery;
• Enclosure material: metal;
• Wall-mount capability;
• Warranty: 12 months.

Package Contents

• U-TEX UPS TB-0301 7Ah - 1 pc.;
• Set of keys - 1 pc.

This U-tex UPS features easy integration into existing systems and provides reliable protection against overloads and short circuits. The metal enclosure not only protects the electronics but also allows for neat installation of a 12V (7-9 Ah) sealed lead-acid battery, which is sold separately. The terminal connection simplifies wiring, and LED indicators allow for quick assessment of network status and battery charge. It is recommended to use the device in locations where continuous power is critical for ensuring the safety and stability of equipment operation.

Brand: U-tex. Product category: Energy Independence > Uninterruptible Power Supplies.
