Teneta Drone Detector (415-1050MHz) — Overview and Features

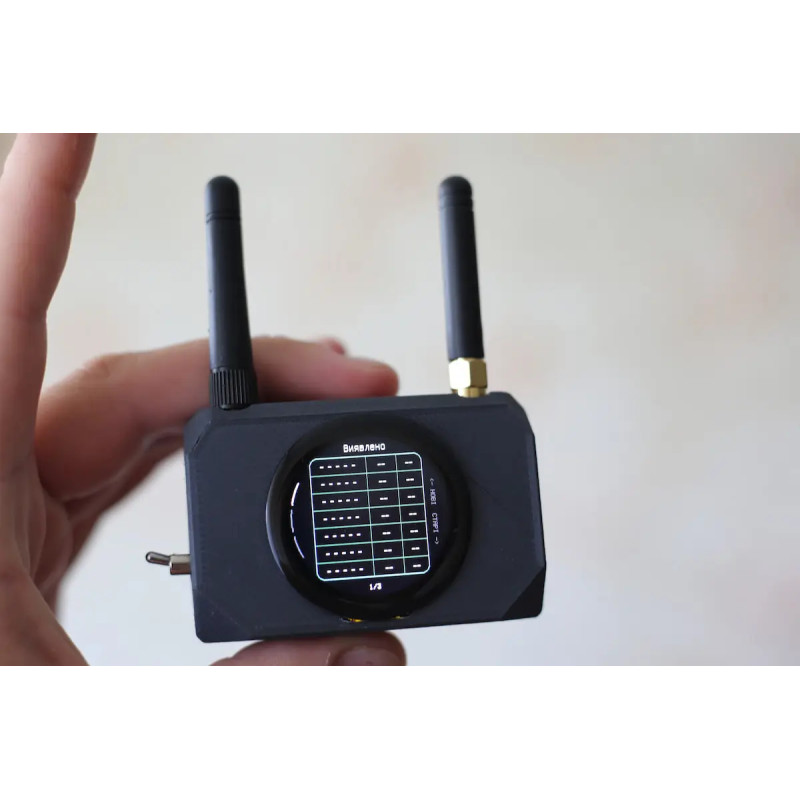

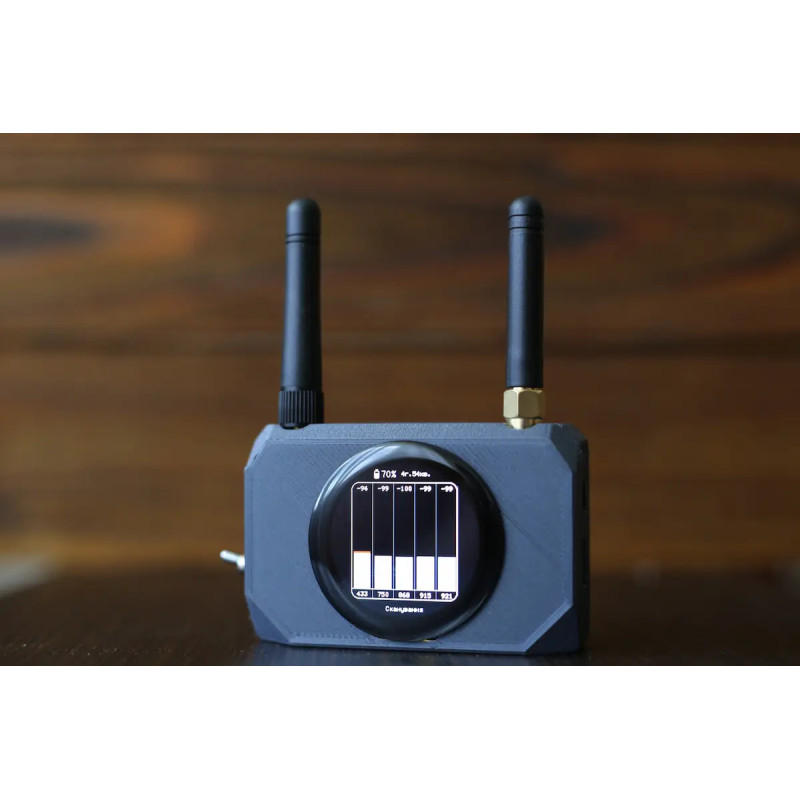

The Teneta Drone Detector (415-1050 MHz) is a portable device of Ukrainian production from the TENETA brand, designed for fast and reliable detection of unmanned aerial vehicles (UAVs). Teneta comes with two antennas, provides detection of FPV and other types of drones, and is suitable for use by private security groups, enterprises, at mass events, and by operational units.
Frequency Range and Detection Distance
The device covers frequencies from 415 to 1050 MHz. Under normal conditions, Teneta detects drones at a distance of over 2 km, and in an open field environment, the maximum detection distance can reach 4.5 km. The detector tracks signal levels (RSSI) at specific frequencies, allowing for an assessment of the source intensity and approximate distance to it.
Power, Charging, and Battery Life
Battery life is approximately 7 hours 30 minutes. Battery charging time is about 90 minutes at 5V and 1A current. Charging is supported via standard USB or Type-C connectors. Remaining operating time is displayed on the device's main screen (at the top).
Interfaces and Connectivity

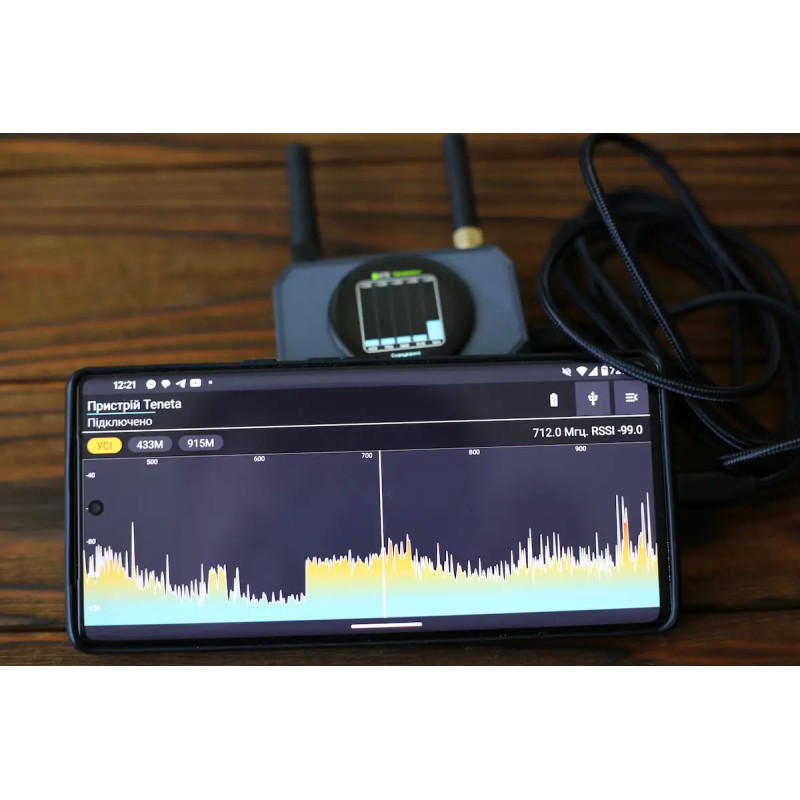

Teneta can connect to an Android smartphone via a special "Teneta" application. The application allows displaying the device screen on a mobile phone, viewing graphs and RSSI levels by frequency, and conducting remote monitoring and signal analysis.
Alarms and Notifications
The notification system is implemented via sound, vibration, and on-screen information display. The user can adjust parameters or completely disable sound and vibration in the settings menu. The device also supports LoRa packet sound playback mode. Thresholds and detection times can be configured for more precise operation in various conditions.
Operation under EW Influence
Teneta remains operational in the presence of electronic warfare (EW) equipment, however, with active EW, the ability to detect UAVs via their own communication channels is lost. Instead, the detector allows scanning RSSI to detect the presence and power of the jamming source, which is useful for assessing EW actions.
Unique Functions and Settings
- UAV detection threshold settings (RSSI threshold, detection time per frequency, packet threshold).
- Flexible device settings: screen brightness and screen operating time.
- Notification settings: sound and vibration alerts, LoRa packet sound.
- Over-the-air (OTA) software updates.
- Ability to change the screen indicator color to red for increased alarm visibility.
Dimensions, Weight, and Form Factor
The device weighs 90 g. Dimensions according to technical data: height — 80 mm, width — 24.0 mm, length — 97.0 mm. The source data also includes the value Weight 0.9. The form factor is portable, making Teneta convenient for operational use individually or as part of mobile groups.
Technical Specifications
| Country of manufacture | Ukraine |
|---|---|
| Condition | New |
| Minimum frequency range | 415 MHz |
| Maximum frequency range | 1050 MHz |
| Form factor | Portable |
| Warranty period | 12 months |
| Height | 80 mm |
| Width | 24.0 |
| Length | 97.0 |
| Mass | 90 g |
| Weight (from original) | 0.9 |
The Teneta drone detector is an optimal solution for securing private facilities, enterprises, events, and operational units that require mobile and rapid UAV detection across a wide frequency range with flexible notification settings, detection thresholds, and remote monitoring via an Android application.
