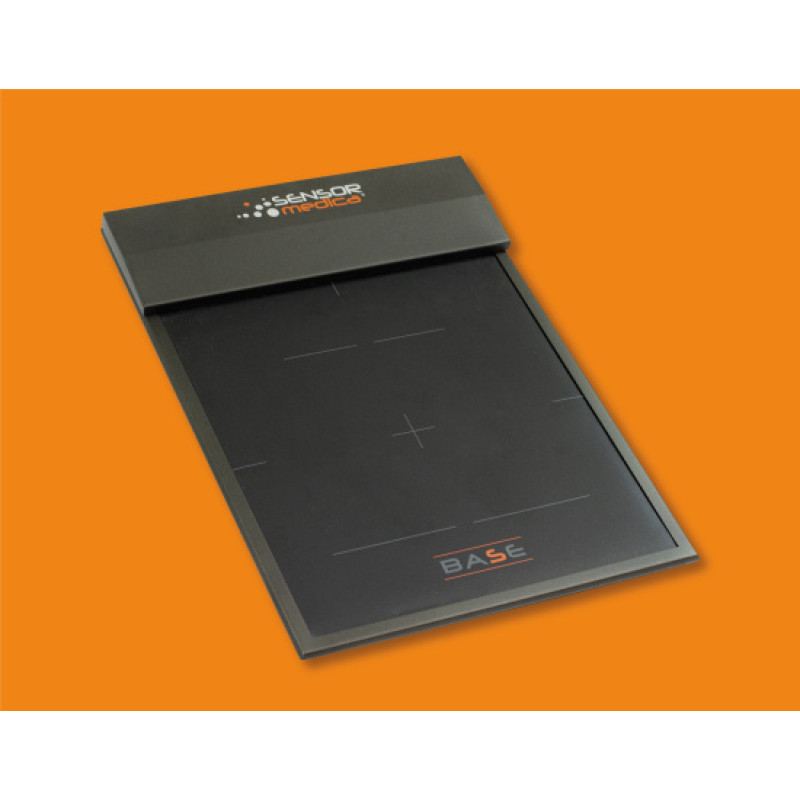

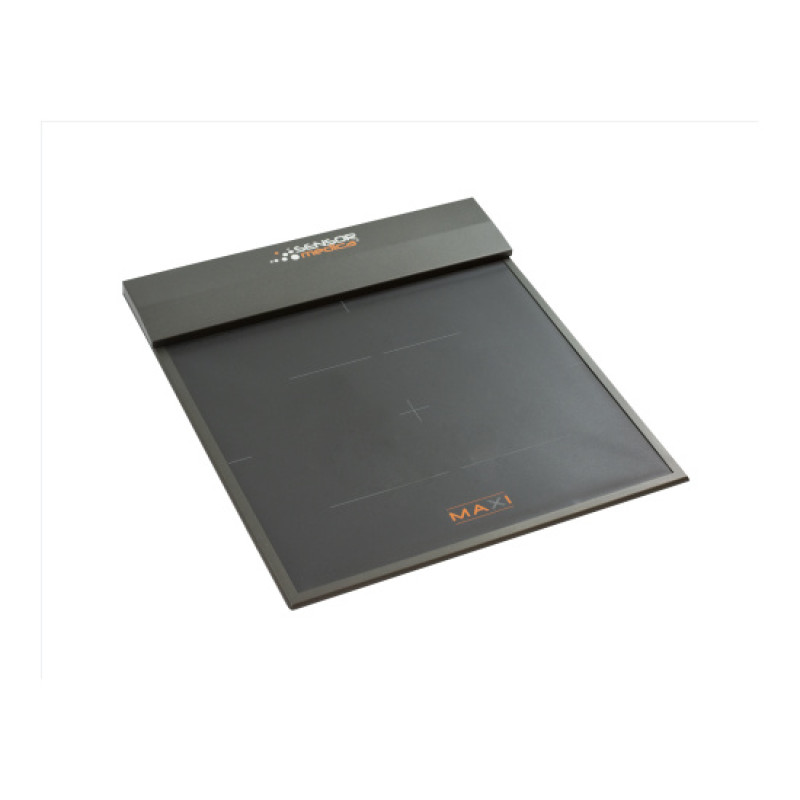

The Freemed 150x50 baropodometric platform from Sensor Medica is a professional tool for comprehensive orthopedic foot examination and gait analysis. This model belongs to the Freemed family of platforms, designed for non-invasive foot scanning and posture assessment in both static and dynamic modes. The platforms are made of aluminum alloy, ensuring high strength, lightness, and versatility in use.

Key Technical Parameters and Capabilities

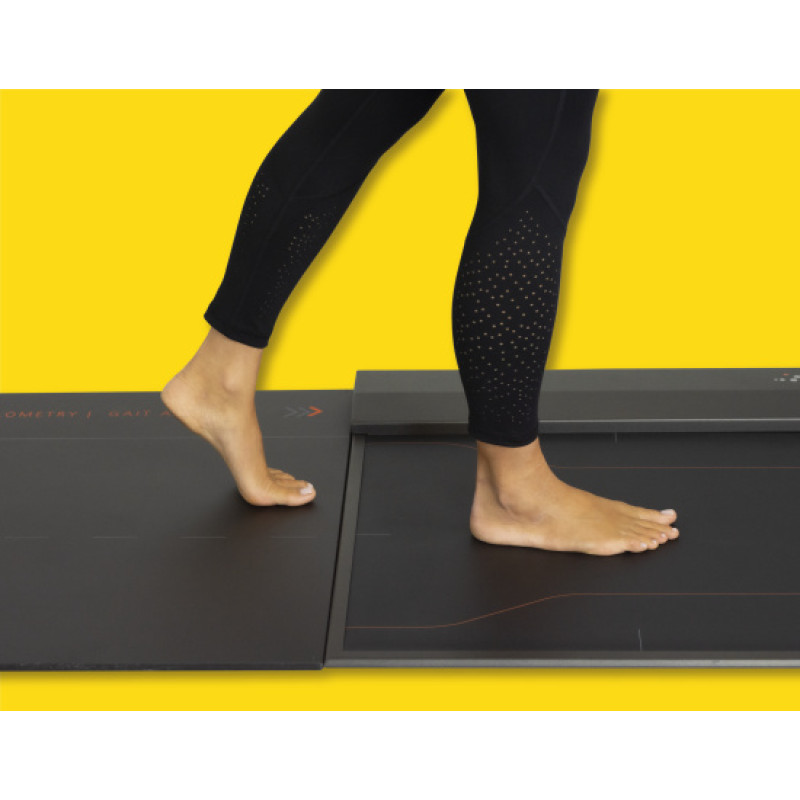

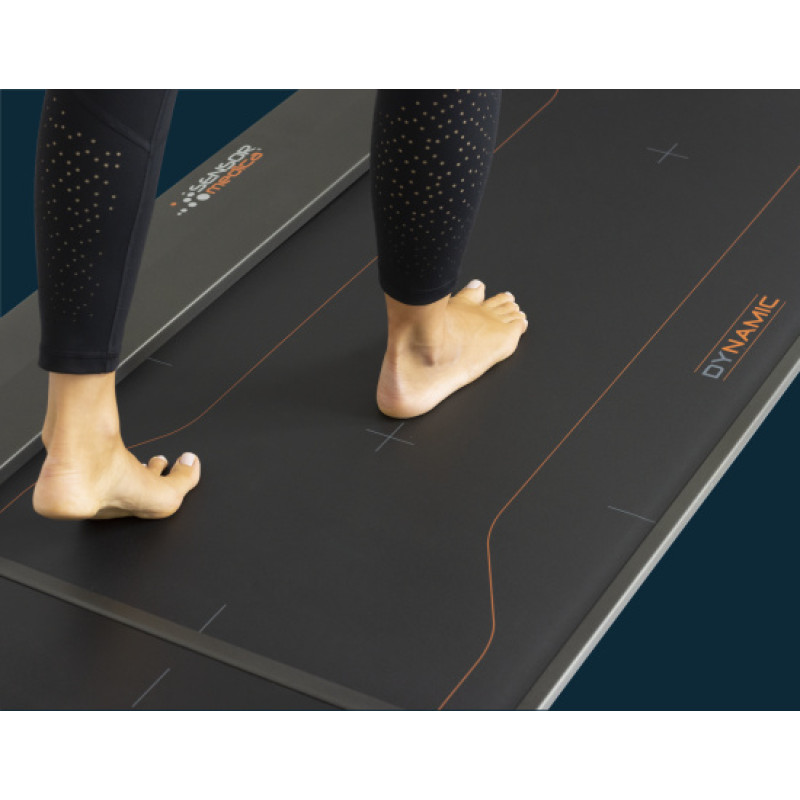

Platforms are available in six sizes, up to 3 meters in length, to meet various clinical needs. Data acquisition technology is implemented using thousands of latest-generation pressure sensors; the sampling rate exceeds 400 Hz in real time. The resistive sensors are coated with 24-carat gold, guaranteeing exceptional reliability and long-term operation—up to 1,000,000 examinations. Connection to a computer is possible via USB or optionally via Bluetooth, with freeStep for Windows software. All configurations are equipped with a passive entry and exit surface for natural, spontaneous gait, simplifying the analysis of movement patterns. Models up to size 150 x 50 come with an additional carrying bag.

Functions and Clinical Applications

The system allows for comprehensive analysis, including automatic report generation based on scientific standards and specialist support for result interpretation. It is possible to synchronize the pressure map with video images for more precise analysis. The platform provides synchronized observations: static, dynamic, stabilometric, and videographic, which can be integrated with other devices in a single workflow. The integrated FreeStep software delivers exceptional image quality and fast, comprehensive analysis.

Main Measurement Capabilities

• static pressure measurement;
• dynamic pressure measurement;
• load distribution analysis;
• plantar pressure report;
• step length measurement;
• gait line analysis;
• postural stability test;
• portable gait analysis.

Country of manufacture: Italy.

This platform is ideal for medical centers, orthopedic offices, rehabilitation departments, and sports laboratories where precise data on foot pressure distribution, postural stability, and kinematic gait parameters are required. The combination of highly sensitive sensors, high sampling rate, and advanced software provides reliable results for diagnosis and planning of therapeutic interventions.
